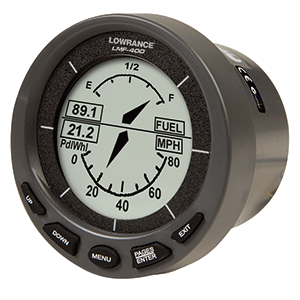

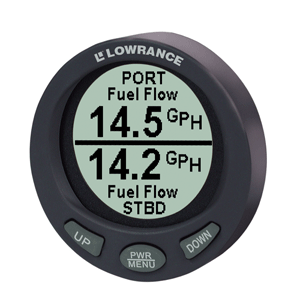

Compact Multi - Function Gauge

Advanced multi-function, high-contrast round dot matrix gauge displaying
graphic and numerical digital data. NMEA 2000® data communications
compatible, and connect within an affordable, high-performance
LowranceNET™ network to display real-time readings from an array of
compatible electronic probes (E.P.s), like fluid level, temp, speed, and
more!

Key Features

• High-contrast dot matrix display with advanced LED backlighting

• Compact size fits 2-1/8" (55mm) diameter hole

• NMEA 2000® compatible for LowranceNET™ networking

• Capable of configuring other Lowrance NMEA 2000 devices on the network
  bus

• Capable of displaying the following NMEA 2000 data: paddlewheel speed,
  GPS speed, tachometer, battery voltage, alternator voltage, engine
  temperature, water pressure, engine oil pressure, fuel pressure, boost
  pressure, transmission oil pressure, atmospheric pressure, temperature,
  depth, engine loads, engine hours, fuel flow, fuel economy, fuel remaining,
  fuel used, fuel range, trip fuel used, seasonal fuel used, engine
  synchronizer, fluid level, GPS position, trim tab position, engine trim
  position, and engine alarms and warnings

• Capable of showing data in the following page formats: single digital,
  dual digital, single analog, trim tab, engine diagnostics, engine trim, and
  engine synchronizer

• Packaged without a Fuel Flow E.P. sensor

• Compatible with an array of electronic probes, including fluid level,
  temp, speed, and more

• Capable of connecting to a remote speaker for alarms

Large Multi - Function Gauge

Advanced multi-function, high-contrast round dot matrix gauge displaying
graphic and numerical digital data. NMEA 2000® data communications
compatible, and connect within an affordable, high-performance
LowranceNET™ network to display real-time readings from an array of
compatible electronic probes (E.P.s), like fluid level, temp, speed, and
more!

Key Features

• High-contrast dot matrix display with advanced LED backlighting

• Compact size fits 3-3/8" (86mm) diameter hole

• NMEA 2000® compatible for LowranceNET™ networking

• Capable of configuring other Lowrance NMEA 2000 devices on the network
  bus

• Capable of displaying the following NMEA 2000 data: paddlewheel speed,
  GPS speed, tachometer, battery voltage, alternator voltage, engine
  temperature, water pressure, engine oil pressure, fuel pressure, boost
  pressure, transmission oil pressure, atmospheric pressure, temperature,
  depth, engine loads, engine hours, fuel flow, fuel economy, fuel remaining,
  fuel used, fuel range, trip fuel used, seasonal fuel used, engine
  synchronizer, fluid level, GPS position, trim tab position, engine trim
  position, and engine alarms and warnings

• Capable of showing data in the following page formats: single digital,
  dual digital, quad digital, single analog, dual analog, quad analog, trim
  tab, engine diagnostics, engine trim, and engine synchronizer

• Packaged without a Fuel Flow E.P. sensor

• Compatible with an array of electronic probes, including fluid level,
  temp, speed, and more

• Capable of connecting to a remote speaker for alarms

In-Dash Digital Depth and Temp

The next generation of Lowrance sonar digitals for reliable digital depth display, now with temp readings!

Key Features

• High-contrast dot matrix display with advanced LED backlighting

• Depth capability to 700 feet (213 m)

• High-performance, low-profile, transom-mount, 200 kHz Skimmer transducer with built-in water surface temp sensor

• Shallow and deep depth alarms

• Temp readings to the nearest 0.1 degree Fahrenheit

• Compact size fits standard 2-1/8" (55mm) diameter hole

• Sealed and waterproof

• Lowrance full one-year warranty

CVR-16 Screen Cover
Part #: 000-10050-001

The CVR-16 Screen Cover works with all Lowrance Mark-5 and Elite-5 models.

Works With:

• Elite-5

• Elite-5x

• Mark-5x

• Mark-5x Pro

LWX-1 Sirius® Satellite Weather/Audio Module

Lowrance’s LWX-1 is a compact weatherproof antenna that is easy to mount and provides weather display output to one or more HDS units via ethernet networking.

Features:

• Compatible with all HDS chartplotter-equipped models via ethernet

• Attractive, compact and weatherproof antenna designed for easy flush mount to boat deck or pole-mounted versatility

• Plug-and-Play ethernet connection supplies weather to one or more networked HDS displays (except HDS-5x)

• SIRIUS® Satellite Radio programming via 3.5mm stereo audio jack interface to onboard sound system

• Internal memory saves up to 30 minutes of weather/environmental data for power interuptions and power off during refueling

• SIRIUS® Mariner and Voyager weather subscriptions include the full suite of weather, sea and atmospheric conditions

• SIRIUS® radio subscription offers over 120 crystal-clear channels, including NASCAR, NFL and college football broadcasts

• Weather radar and lightning with high resolution

• 80nm (92 mile) lightning and radial weather display to 10 nm (11.5 mile) limit from coasts

• Latest weather forecasting with icons and text for major U.S. cities

• Cross-country weather radar and lightning with high resolution

• Sea-surface temperature with 2 km (1.2 mile) resolution

• Tropical storm and storm cell tracks

• 0-3 or 0-48 hour forecast, wave height, wave period and direction

• Latest weather forecasting with icons and text for major U.S. cities

• And much more

Incredible new imaging fishfinder with spectacular color to positively improve your fishing image and success for a surprisingly low price.

With the incredible new standalone Elite-5x DSI imaging fishfinder, you’re equipped with a technological new edge improve your success in finding -- and fishing -- hot spots - clearly, precisely, and especially affordably.

Picture-Perfect Fishfinding
Exclusive Lowrance DownScan Imaging innovation displays crystal-clear photo-like views of the underwater worlds below the boat. No interpretation needed to see:

• Thermoclines Exposed - clearly see the boundary layer between the lower cooler water and, upper warmer, oxygen-rich zone where fish hang

• Fish Truly Revealed - Elite-5x DSI imaging leaves nothing to the imagination, clearly showing predator fish and baitfish schools

• Bottoms Uncovered - you easily distinguish between hard and soft bottoms, as well as fish and structure on/near the bottom

• Structure Disclosed- with photo-like views you can recognize all manner of structure at a glance, like bridge pilings, laydowns, ledges, drop-offs, vegetation, wrecks; no interpretation needed

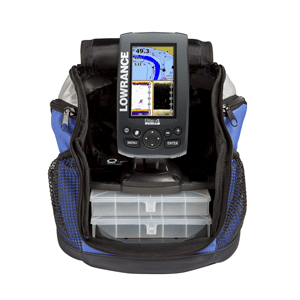

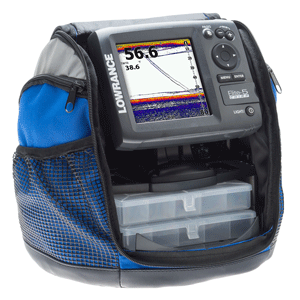

Elite-5 IceMachine™

Color Fishfinder Chartplotter,Easier-to-Use Portable Ice Fishing Pack!

The popular and proven Lowrance Elite-5 combo, complete with special ice mode software, and exclusive portable ice fishing system.

• Super-bright, 5 in./12.7 cm TFT color display, with 480x480 pixelresolution, and superb no-fade viewing detail in sunlight andtemps down to -20° F/-28° C

• Powerful 200 kHz operation with 20° sonar coverage down to1000 ft/305 m with custom, weighted ice fishing transducer andunique new float system (included)

• Precision internal 16-channel GPS antenna, built-in basemapwith U.S. waters detail, and microSD card slot for LakeMaster®and Navionics® cartography options

• Weatherproof soft-side pack with zippered front and rear access

• Accessory zippered pockets plus "easy-find" mesh stow pouches

• Adjustable display platform elevates for easier viewing

• Includes tackle trays, rod-holder slots, quick-access lure storageconveniences

• Handy storage for two StowAway® utility boxes (included)

• Holds two 12 vDC 7A sealed batteries and charger (one batteryand charger included)

Easy-to-View Display

X-4 Fishfinder

High-detail, wide-coverage 200 kHz Lowrance fishfinder. Find a whole lot more, pay a whole lot less.

Welcome to a whole new world of a simple-to-use, and more highly effective fish-finding friend to have onboard, at a price that can’t be beat.

Loaded with incredible Lowrance features, plus eye-popping fishfinder display detail day and night, you just can’t beat the new X-4 for it’s total Lowrance performance perks and exceptional low price!

Features:

• Perfect for kayaks

• Easy to use and afford

• Packed with Pro-proven Lowrance fishfinder features

• Up to 60 degrees of wider, effective fish-finding coverage

• Advanced receiver design delivers superior target detail & separation

• High-visibility display and target detail even in direct sunlight

• Auto and manual operation

• Exclusive 200 kHz Skimmer® transducer with water temp sensor

• Compact case fits the smallest boats and spaces

• Fully waterproof for the harshest environments

• One year limited warranty

• Robust 4 in./10.2 cm Film SuperTwist LCD display

• Can’t-miss 240V x 160H pixel target detail with 4-level gray scale resolution

• Super-crisp viewing in direct sunlight

• Screen backlighting for low-light conditions

• Exclusive Lowrance 200 kHz Skimmer® transom-mount transducer with built-in water temp sensor and up to 60 degrees of wider fish-finding coverage - operates at boat speeds to 70 mph/61 kts

• Rock-steady 800W peak-to-peak/100W RMS power

• Tested depths to 600 ft./183 m

• Lowrance automatic ASP™ (Advanced Signal Processing) tuning for the best sonar picture possible in virtually any water condition

• Lowrance GRAYLINE® enhances viewing for target separation and defines bottom composition/hardness

• Lowrance Advanced Fish I.D.™ fish symbols with FishTrack™ target depth readings display option aids in lure/bait placement

• Automatic depth ranging tracking with instant screen updates

• Auto and Zoom bottom track for marking bottom-holding targets

• Selectable deep water, shallow water, and fish alarm alerts

• Built-in backup memory saves user settings at power-down

• Fully sealed and waterproof for even the harshest marine environments

• One-year limited warranty protection

X-4 Pro Fishfinder

High-detail, dual-coverage 83/200 kHz Lowrance fishfinder. Easily cover more water and fish smarter for a lot less.

From Lowrance industry-leading innovation comes the versatile X-4 Pro for productive shallow and deepwater fishfinding coverage, with superb target detail and separation, on both inland lakes and in-shore coastal waters.

Featuring an advanced receiver design plus a wealth of pro-angler-proven features, the X-4 Pro has no equal in total performance, legendary Lowrance fish-finding features, ease-of-use, and even better, it’s easy to afford.

Features:

• Perfect for Kayaks

• Easy to use and afford

• Filled with Pro-proven Lowrance fishfinder features

• Powerful wider and deeper fish-finding coverage

• Advanced receiver design delivers superior target detail and separation

• High-visibility display and detail even in direct sunlight

• Auto and manual operation

• Dual-search 83/200 kHz Skimmer® transducer with water temp sensor

• Perfect for inland lakes and coastal marine anglers

• Compact case fits the smallest boats and spaces

• Fully waterproof for the harshest environments

• One year limited warranty

• Robust 4 in./10.2 cm Film SuperTwist LCD display

• High-detail 240V x 160H pixel definition with 4-level gray scale resolution

• Crisp, sharp viewing in direct sunlight

• Screen backlighting for low-light conditions

• Unique dual-search 83/200 kHz Skimmer® transom-mount transducer with built-in water temp sensor and up to 120 degrees expanded fish-finding coverage - operates at boat speeds to 70 mph/61 kts

• Full 1,500W peak-to-peak/188W RMS power

• Tested depths to 1,000 ft./305 m @ 83 kHz

• Lowrance automatic ASP™ (Advanced Signal Processing) tuning for the best sonar picture possible in virtually any water condition

• Lowrance GRAYLINE® enhances viewing for target separation and defines bottom composition/hardness

• Lowrance Advanced Fish I.D.™ fish symbols with FishTrack™ target depth readings display option aids in lure/bait placement

• Automatic depth ranging tracking with instant screen updates

• Auto and Zoom bottom track for marking bottom-holding targets

• Selectable deep water, shallow water, and fish alarm alerts

• Built-in backup memory saves user settings at power-down

• Fully sealed and waterproof for even the harshest marine environments

• One-year limited warranty protection

X-4 Fishfinder Portable w/Tranducer

Go-anywhere, high-detail, Lowrance fishfinding. Affordable performance is in the bag with this complete portable system.

Great for go-anywhere ease and excellent fishfinding performance for kayaks, row boats, rental boats or virtually any watercraft that floats.

The X-4 Portable features the X-4 Fishfinder packed inside a waterproof soft-sided zippered case that includes sturdy mounting base, Skimmer® 200 kHz transducer and battery power pack for eight D-cell batteries (batteries not included).

Features:

• Perfect for kayaks

• Waterproof soft-sided case has everything; just add batteries X-4

• X-4 Fishfinder with Pro-proven Lowrance features

• Advanced receiver design delivers superior target detail and separation

• High-visibility display and target detail even in direct sunlight

• Auto and manual operation

• Suction cup-mount Skimmer® transducer with water temp sensor

• Up to 60 degrees of wider effective fish-finding coverage

• X-4 fully waterproof for the harshest environments

• One year limited warranty

• Robust 4 in./10.2 cm Film SuperTwist LCD display

• Can’t-miss 240V x 160H pixel target detail with 4-level gray scale resolution

• Super-crisp viewing in direct sunlight

• Screen backlighting for low-light conditions performance

• Lowrance automatic ASP™ (Advanced Signal Processing) tuning for the best sonar picture possible in virtually any water condition

• Lowrance GRAYLINE® enhances viewing for target separation and defines bottom composition/hardness

• Lowrance Advanced Fish I.D.™ fish symbols with FishTrack™ target depth readings display option aids in lure/bait placement

• Automatic depth ranging tracking with instant screen updates

• Auto and Zoom bottom track for marking bottom-holding targets

• Selectable deep water, shallow water, and fish alarm alerts

• Built-in backup memory saves user settings at power-down

• Fully sealed and waterproof for even the harshest marine environments

• One-year limited warranty protection

Elite-5m Baja Chartplotter
Part #: 000-10208-001

Feature-packed off-road GPS navigation with a brilliant, easy-to-view color display.

Popular and proven Lowrance off-road GPS performance in a bright
5 in. color display makes a perfect fit for tighter, off-highway vehicle interiors. Built-in 16-channel GPS+WAAS antenna precision, plus external antenna option included.

The color Elite-5m Baja Chartplotter delivers high navigation performance and high color for your off-road journeys, and at a very affordable low price. All provide any vehicle with incredible precision and functionality, in addition to a spectacular new view.

The brilliant 5 in./12.7 cm, 480x480 pixel SolarMAXT 256-color TFT display has unmatched screen brightness, contrast, resolution and viewing detail at wider angles. Adjustable screen and keypad backlight improves usability and visibility day or night.

The internal 16-channel GPS antenna and external LGC-16W GPS antenna provide great WAAS-enabled precision for navigation. Built-in memory allows for up to 3,000 waypoints, 100 routes/100 waypoints per route and 100 retraceable plot trails/up to 10,000 points per trail. All of this, packaged with easy-to-use menus with Advanced Mode to expand features selection.

Features:

• Internal 16-channel GPS+WAAS antenna plus external
  LGC-16W GPS antenna

• Brilliant 5 in./12.7 cm SolarMAXT PLUS high-detail color display enhances viewing in sunlight and at wide angles

• Built-in U.S. basemap

• Fully loaded with GPS features and functions with simplified menu

• Saves 3,000 waypoints; 100 routes and 100 retraceable plot trails

• Keypad design for smooth one-hand operation

• MicroSD media card slot

• Includes FM-ME5 dash flush-mounting kit

Super-Bright Color Display

• Best brightness, contrast, resolution for superior viewing

• Fully adjustable screen and keypad CCFL backlight

• 4,000 W PTP, 500 W RMS; depth to 1,000’ (305 m)

• 83/200 kHz, 20/60 degree Skimmer transducer w/temp

• Unique Trackback feature for sonar history scroll-back

• over 3,000 enhanced lake maps with depth contour and shoreline detail

• coastal spot depth soundings, shoreline detail and depth contours to 1,000’

• Internal 16-channel GPS+WAAS antenna precision even with in-dash installs; external antenna option

• Waterproof micro SD memory card slot for multiple mapcard options: Navionics, Fishing Hot Spots,LakeMaster, NauticPath

• Up to 3,000 waypoints, 100 routes/100 waypoints per route and 100 retraceable plot trails/up to 10,000 points per trail

  Plus..

• Easier-to-use menus with Advanced User Mode feature

• New case/mounting design for easy one-hand tilt/swivel viewing adjustment, removal for stow and re-install

• New uniplug 1/4-turn connectors with advance reliability

• Lowrance one-year limited warranty

Unique new fishfinding imaging, precision GPS navigation and brilliant 5 in./12.7 cm color viewing detail and suprisingly affordable.

With the incredible new standalone Elite-5 DSI imaging fishfinder with chartplotter, you’re equipped with a technologically new way to look at finding -- and fishing -- hot spots: clearly, precisely,and especially affordably.

Picture-Perfect Fishfinding
Exclusive Lowrance DownScan Imaging innovation displays crystal-clear photo-like views of the underwater worlds below the boat. No interpretation needed to see:

• Thermoclines Exposed - clearly see the boundary layer between the lower cooler water and, upper warmer, oxygen-rich zone where fish hang

• Fish Truly Revealed - Elite-5 DSI imaging leaves nothing to the imagination, clearly showing predator fish and baitfish schools

• Bottoms Uncovered - you easily distinguish between hard and soft bottoms, as well as fish and structure on/near the bottom

• Structure Disclosed - with photo-like views you can recognize all manner of structure at a glance, like bridge pilings, laydowns, ledges, drop-offs, vegetation, wrecks; no interpretation needed

Unique new fishfinding imaging and precision GPS navigation packed with a special-issue Navionics Gold chartcard covering coastal U.S. and Canada plus major Canadian lakes and Great Lakes.

With the incredible new standalone Elite-5 DSI imaging fishfinder with chartplotter, you’re equipped with a technologically new way to look at finding -- and fishing -- hot spots.clearly. precisely.and especially affordably.

This bundle includes a custom 2GB Navionics Gold micro SD card with Gold coastal/offshore coverage of US and Canadian waters along with coverage of the Great Lakes, Alaska, Hawaii, the Bahamas and over 125 major Canadian lakes.

Picture-Perfect Fishfinding
Exclusive Lowrance DownScan ImagingT innovation displays crystal-clear photo-like views of the underwater worlds below the boat. No interpretation needed to see:

Lowrance Broadband 3G™ Radar
Part #: 000-10418-001

Faster, better by far!

New Broadband 3G™ Radar. Unrivaled target separation and detection near and farther - with 30% more range. The safest choice for more boats.

Features:

• Crystal Clear Images

• Zero Radiation Hazard

• InstantOn™ in Seconds

• Low Power Draw

• Safe to Mount Anywhere

• Quick Installation

• Unmatched Short-Range Detection

• 10 MARPA Targets

B60 Tilted Element™ 12°

12° tilted version is designed for 8° - 15° deadrise angles

The bronze B60-12° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

• Depth/Temp

• 50/200 kHz

• 600w RMS

• Mid-performance

• Bronze

1kW Tilted Element

20°

Features:

• Depth/Temp

• 50/200 kHz

• 1 kW RMS

• High-performance

• Bronze

Lowrance PPP-18I Elite/Mark Icefish Bag w/Transducer

The easiest-to-use and the most affordable and complete portable accessory
system ever from Lowrance.

**WILL NOT WORK WITH DSI MODELS***

Features:

• Ideal for all Mark, Elite, X-4, X-4 Pro, and HDS-5 displays(with optional adapter), and similar earlier models

• Weatherproof soft-side pack with zippered front and rear access

• Accessory zippered pockets plus "easy-find" mesh stow pouches

• Adjustable display platform elevates for easier viewing

• Weighted uniplug 200 kHz ice fishing transducer and unique new ice transducer float (HDS-5 use requires Adaptor HDS-5 PPP17/18I option)

• Includes tackle trays, a holder, quick-access lure storage conveniences

• Handy storage for two StowAway utility boxes (included)

• Holds two 12 vDC 7A sealed batteries and charger (one battery and charger included)

Endura™ Out&back
SETS THE STANDARD IN AFFORDABLE EASE-OF-USE IN OUTDOOR GPS NAVIGATION

Operate intuitively with color TOUCHSCREEN, straight forward menus and "hot key" physical buttons

Upgrade with additional outdoor content any time you wish for many specific activities through download or plug-and-play Micro SD cards

Add shared web community content including routes/trails, POI’s, elevation data, etc. in GPX format through drag-and-drop to the device

FEATURES AND BENEFITS:

• Color, 2.7" (6.8 cm) touch screen optimized for outdoor use

• Easy to understand basemap with hill shade, topographic contours, primary roads, and key POI’s

• Geocaching capable with multiple specific functions and compatibility with Geocaching.com

• Trip computer and route recording to track performance and share with friends or web communities

• Sport specific trail content available for purchase online for hiking, mountain biking, skiing, snowmobiling, kayaking, offroad/ATV, and many more

• Picture Viewer for viewing photos loaded from computer or web or for use with trail cameras

• Multiple Mounting Options with two lanyard attachment points for lanyard, RAM Mount handlebar mounts, etc.

• Power standby mode with indicator light saves battery while allowing ultra fast startup

• Dimensions (HxWxD):5.1" x 2.3" x 1.2"

• Weight: 5.8 oz/165 g (without batteries)

• Micro SD card slot for up to 32 GB cards

• Mini USB port for power and data cables

• Waterproof (IPx7) with rubber armoring

• Uses two AA batteries (not included)

Endura™ Safari
THE MOST VERSATILE HANDHELD GPS NAVIGATOR
FOR ANY OUTDOOR ADVENTURE

High-performance navigation through combination of advanced mapping, trip computer, electronic compass, and barometric altimeter

Unparalleled ease-of-use with combination of simplified touch screen interface and "hot key" physical buttons to quickly access main features

Multi-recreational with dedicated outdoor features and a large range of mapping options preloaded on plug & play Micro SD cards or web download

FEATURES AND BENEFITS:

• Color, 2.7" (6.8 cm) touchscreen optimized for outdoor use combined with physical buttons

• Advanced basemap with detailed hillshade, primary and secondary roads, and key points-of-interest

• Directly accepts GPX trails and POIs from web communities or other sources

• Plug-and-play and downloadable mapping options such as Fishing Hot Spots®, etc.

• Multimedia MP3/voice notes, picture, and video players - for entertainment or viewing trail camera photos

• Trip computer - records trails, altitudes, trip times, speed and distance traveled

• Power standby mode saves battery life while allowing ultra fast startup

• Fully turn-by-turn navigation capable for car, motorcycle, cycling, etc. (with optional purchase)

Endura™ Sierra
THE MOST POWERFUL AND COMPLETE OUT-OF-THE-BOX OUTDOOR GPS NAVIGATION EXPERIENCE

"Fully Loaded" with detailed topographic outdoor maps and content in a high performance GPS computer with electronic compass and altimeter

Unparalleled ease-of-use with combination of simplified touch screen interface and "hot key" physical buttons to quickly access main features

Multi-recreational with dedicated outdoor features and a large range of mapping options preloaded on plug & play Micro SD cards or web download

FEATURES AND BENEFITS:

• Premium outdoor content pre-installed including detailed hill shade, topographic contours, extensive outdoor trails and POIs as well as road network

• Directly accepts GPX trails and geocaches, as well as POIs from web communities or other sources

• Color, 2.7" (6.8 cm) touchscreen optimized for outdoor use combined with physical buttons

• Sensor enhanced navigation with digital, stabilized 3-axis compass and barometric altimeter

• Trip computer - records trails, altitudes, trip times, speed and distance traveled

• Multimedia MP3/voice notes, picture, and video players - for entertainment or viewing trail camera photos

• Power standby mode saves battery life while allowing ultra fast startup

• Turn-by-turn navigation capable for car, motorcycle, cycling, etc. (with optional purchase)

HDS-10 Gen2 Insight USA with LSS-2, 83/200 kHz and LSS-2 Transducer
Part #: 000-10871-001

The Lowrance HDS-10 Gen2 Fishfinder/Chartplotter has a 10.4"/26.4cm display that offers the biggest, brightest possible HDS® viewing experience.

• New, fastest HDS® ever

• Realtime StructureMap™ capability

• Super-accurate, internal GPS antenna

• High-bright, sunlight-viewable display with LED backlighting

• TrackBack™ feature to review sonar history and save waypoints on key locations

• Built-in Insight™ USA mapping options (Americas models) or Navionicsr world background map

• High-detail mapping options including Insight HD, Navionicsr Platinum+ with TurboVIew™, and Fishing Hot Spots® PRO

• NMEA 2000r and high-speed Ethernet networking options

• Two-year limited warranty plus Lowrance 5-Year Advantage coverage

• Wider SideScan Imaging - Crisp side-viewing detail, with extended 600ft/183m side-to-side coverage, provides wider scan, saving you time in finding productive locations. Reveals targets at farther distances, and with
  higher resolution - structure, game fish and baitfish alike.

• Higher-Res DownScan Imaging™ - The innovation of dedicated sounding focused vertically beneath the boat now delivers even higher definition to further remove all guesswork in finding and marking structure, game fish, baitfish and thermoclines.

• SideScan + DownScan Imaging™ available with split screen viewing options to give you the complete picture

• View DownScan Imaging™ with Broadband Sounder in split-screen, to remove all the guesswork

• Synchronized Sonar history Track-Back™ with waypoint marking.

• Networkable with up to three multifunction displays or Ethernet modules

• Fully-waterproof modules

HDS-7 Gen2 Insight USA w/LSS-2, 83/200 kHz T/M and LSS-2 Transducer
Part #: 000-10869-001

Lowrance HDS-7 Gen2 Fishfinder/Chartplotter is great for anglers and boaters who still want a convenient size -- along with a wide, easy-to-view screen for more sonar history and chart display.

• New, fastest HDS® ever

• Realtime StructureMap™ capability

• Super-accurate, internal GPS antenna

• High-bright, sunlight-viewable display with LED backlighting

• TrackBack- feature to review sonar history and save waypoints on key locations

• Built-in Insight™ USA mapping options (Americas models) or Navionicsr world background map

• High-detail mapping options including Insight HD, Navionicsr Platinum+ with TurboVIew™ and Fishing Hot Spotsr PRO

• NMEA 2000® and high-speed Ethernet networking options

• 2-year limited warranty

• Wider SideScan Imaging - Crisp side-viewing detail, with extended 600 ft/183 m side-to-side coverage, provides wider scan, saving you time in finding productive locations. Reveals targets at farther distances, and with
  higher resolution - structure, game fish and baitfish alike.

• Higher-Res DownScan Imaging™ - The innovation of dedicated sounding focused vertically beneath the boat now delivers even higher definition to further remove all guesswork in finding and marking structure, game fish, baitfish and thermoclines

• Side Scan+ DownScan Imaging™ available with split screen viewing options to give you the complete picture

• View DownScan Imaging™ with Broadband Sounder in split-screen, to remove all the guesswork

• Synchronized Sonar history Track-Back™ with waypoint marking

• Networkable with up to three multifunction displays or Ethernet modules

• Fully-waterproof modules

HDS-8 Gen2 Insight USA w/LSS-2, 83/200 kHz T/M and LSS-2 Transducer
Part #: 000-10870-001

Lowrance HDS-8 Gen2 Fishfinder/Chartplotter is the best compromise for boat owners looking for a larger display with a just-right footprint.

• New, faster HDS® ever

• Realtime StructureMap™ capability

• Built-in, award-winning Broadband Sounder™

• Super-accurate, internal GPS antenna

• High-bright, sunlight-viewable display with LED backlighting

• TrackBack™ feature to review sonar history and save waypoints on key locations

• Built-in Insight™ USA mapping options (Americas models) or Navionics® world background map

• High-detail mapping options including Insight HD, Navionics® Platinum+ with TurboView™, and Fishing Hot Spots® PRO

• NMEA 2000® and high-speed Ethernet networking options

• 2-year limited warranty

• Wider SideScan Imaging - Crisp side-viewing detail, with
  extended 600 ft/183 m side-to-side coverage, provides wider scan, saving you time in finding productive locations. Reveals targets at farther distances, and with higher resolution - structure, game fish and baitfish alike.

• Higher-Res DownScan Imaging™ - The innovation of dedicated sounding focused vertically beneath the boat now delivers even higher definition to further remove all guesswork in finding and marking structure, game fish, baitfish and thermoclines.

• SideScan + DownScan Imaging™ available with split screen viewing options to give you the complete picture.

• View DownScan ImagingT with Broadband Sounder in
  split-screen, to remove all the guesswork.

• Synchronized Sonar history Track-Back™ with waypoint marking.

• Networkable with up to three multifunction displays or
  Ethernet modules.

• Fully-waterproof modules

HDS-5 Gen2 Lake Insight w/LSS-2, 83/200 kHz and LSS-2 Transducer
Part #: 000-10868-001

Enjoy HDS® high-definition in a popular space-saving size.

• New, fastest HDS® ever

• Realtime StructureMap™ capability

• Built-in, award-winning Broadband Sounder™

• Super-accurate, internal GPS antenna

• High-bright, sunlight-viewable display with cold-cathode, fluorescent backlighting

• Built-in Insight™ USA mapping options (Americas models) or Navionics® world background map

• Wider SideScan Imaging - Crisp side-viewing detail, with extended 600 ft/183 m side-to-side coverage, provides wider scan, saving you time in finding productive locations. Reveals targets at farther distances, and with
  higher resolution - structure, game fish and baitfish alike.

• Higher-Res DownScan Imaging™ - The innovation of dedicated sounding focused vertically beneath the boat now delivers even higher definition to further remove all guesswork in finding and marking structure, game fish, baitfish and thermoclines.

• SideScan + DownScan Imaging™ available with split screen viewing options to give you the complete picture.

• View DownScan Imaging™ with Broadband Sounder in split-screen, to remove all the guesswork.

• Synchronized Sonar history Track-Back™ with waypoint marking.

• Networkable with up to three multifunction displays or Ethernet Modules.

• Fully-waterproof modules

BR24 only, interface junction box for waterproof installation - For BR24 only, interface junction box for waterproof installation; also provides heading input for systems with NMEA 2000® backbone (SimNet)

Faster, better by far!

New Broadband 3G™ Radar. Unrivaled target separation and detection near and farther ? with 30% more range.

The safest choice for more boats.

• Crystal Clear Images
• Zero Radiation Hazard
• InstantOn™ in Seconds
• Low Power Draw
• Safe to Mount Anywhere
• Quick Installation
• Unmatched Short-Range Detection
• 10 MARPA Targets

Broadband 3G™ Radar clearly marks more targets farther away from your boat. So, you enjoy exclusive, close-in (6.5 ft/2 m) target detection of Broadband Radar™ technology, with the addition of exposing distant targets previously unseen before.

Lowrance Broadband Radar™ provides amazing target resolution, even at an unprecedented 1/32 nm range. Docks, channel markers, moored vessels and other critical targets are displayed with pronounced clarity and separation, for added safety and confidence in close quarters. Broadband Radar™ technology eliminates the "main bang" of pulse radar ? an obscured viewing "dead zone" immediately around the boat ? which prevents display of any close-in hazards.

Lowrance Broadband Radar™ transmits at 1/10,000 the power of typical pulse radars, emitting 5-times less energy than an average cell phone! So, Broadband 3G™ Radar is safe to mount in locations never before possible. Plus, with the lowest DC power draw of any X-band marine radar, it's the first and only radar ideally suited for sailboats and other fishing or cruising boats with limited power.

No more waiting 2-3 minutes for a pulse radar magnetron to warm up. The 100% solid-state Broadband 3G™ Radar design provides InstantOn™ navigation in seconds. In darkness, fog or foul weather, you can view your surroundings, near and far, instantly. Ideal for sailboats and other boats wanting to save power, especially at anchor

HDS-7 Multifunction Fishfinder/Chartplotter

NEW SOLARMAX™ PLUS DISPLAY

• Large-but-compact 6.4? full VGA color display with astounding fishfinder and navigational detail
• Sunlight viewable with brighter, clearer, wider-angle viewing
• Brilliant, pure-white LED screen/keypad backlighting is fully adjustable to dim-to-zero to preserve night vision

HIGH-DEFINITION FISHFINDING

Award-winning Broadband Sounder technologies inside the HDS-5 produces the best Lowrance fishfinding ever!

• Superior clarity and up to an astounding 120-degree view of fish- and structure-finding coverage.
• Phenomenal separation of fish targets from structure, baitfish, thermoclines, clutter and bottom.
• Improved underwater fish-holding structure identification; channels, rock piles, stump beds, submerged standing timber, drop-offs and more.
• Exceptional fish-finding performance in any water/weather situation, at all depths and at any speed.
• Peerless bottom tracking performance now with up to 8X zoom range.
• New, multiple choices of display color palettes for marking fish in all water/weather conditions.
• COLORLINE™ greatly improves target definition and separation, plus defines bottom composition.
• Fully loaded with legendary Lowrance performance fishfinder features and functions.
• Transducer 50/83/200 kHz frequency capable ? expanded range of transducers available including patented Skimmer® transom mount 83/200 and 50/200 depth-temp transducers.

HIGH-DEFINITION GPS & MAPPING

• Super-sensitive, 16-channel internal GPS antenna with faster time-to-signal lock and precision position ? networks with NMEA 2000®
• Optional LGC-4000 external 5 Hz 16-channel GPS antenna module with high speed 5X/sec. update rate available for custom applications ? networks with NMEA 2000®
• Built-in Enhanced U.S. base map includes coastal shorelines, over 100,000 bodies of water and 5,000 enhanced lakes with high-detail shorelines and depth contours
• Exclusive new Lowrance Insight cartography now built-in on select models, delivers a whole new dimension in effective, reliable marine navigation and fishing
  • Revolutionary contour shading for stunning life-like perspectives of bottom structure and topography.
  • Exclusive Fishing Hot Spots® fishing points of interest content, includes marked fishing areas, boat launches and fish habitat areas.
  • Lightning-fast map screen redraws and display updates.
  • Insight USA™ coverage for continental U.S. inland waters and Great Lakes, plus U.S. coastal waters.
• Supports the complete range of Navionics® cartridges including Platinum Plus, Platinum and Platinum Hot Maps with 3D mapping featuring TurboView™ for enhanced viewing
• Also supports all Lowrance high-detail mapping and charts on memory card
  • LakeMaster® ProMaps surveyed lakes with high-detail depth contours.
  • Fishing Hot Spots® PRO with fishing points of interest.
  • NauticPath™ offshore/coastal maps, FreedomMaps™ land and lake topographic maps and MapCreate USA Series 7.
• Exceptional waypoint management with icons specifically designed for fishing

EVEN EASIER EASE-OF-USE

• New and unique menu display enhances quicker and easier access to most-used features
• Improved keyboard design for improved angler control in all weather conditions
• Attractive new case design that is easier to install
• Newest high-capacity high-speed flash memory for user functions and cartography storage reduces case size for a more compact performance package
• One high-speed SD card slot for optional detail mapping display and sonar/GPS data recording

ADVANCED NETWORKING & EXPANDABILITY

• Fully compatible with SIRIUS high-resolution, real-time weather and radio with smart antenna module option and ethernet output to displays, and high quality audio output to any onboard stereo; available in two affordable SIRIUS package choices
  • Inland content package includes weather radar, lightning, other weather features, plus real time fuel price search
  • Coastal content package including full suite of weather and sea conditions.
  • 120 channel crystal clear radio service for a small additional monthly fee that includes NASCAR, NFL and college football broadcasts
• Simplified high-speed Ethernet-based networking shares useful sonar, navigation, SIRIUS weather/radio and radar data
• Compatible with Lowrance High Definition Digital Radar radome options with radar/chart overlay feature (with optional heading sensor)
• NMEA 2000® network connectivity for easy multi-station data sharing to monitor and display boat operation systems via onboard and engine sensors
  • Maximize fuel economy with Fuel Flow sensors or digital Engine Interface sensors.
  • Precision temperature sensor option for surface water, livewell, baitwell, cabin and/or engine room readings.
  • Compatible with all other NMEA 2000®-certified sensors from Lowrance -- including speed, fluid level and pressure sensors ? or other manufacturers.
• Track-Your-Buddy and Get-Buddy features in addition to DSC when interfaced with Lowrance-compatible VHF marine radios
• NMEA 0183 compatible

HDS-7 MODEL CHOICES

HDS-7 83/200 kHz transducer, with Enhanced U.S. Basemap #140-05
HDS-7 without transducer, with Enhanced U.S. Basemap #140-34
HDS-7 83/200 kHz transducer, with Insight USA™ #140-12
HDS-7 50/200 kHz transducer, with Insight USA™ #140-14
HDS-7 without transducer, with Insight USA™ #140-36


Unique new fishfinding imaging, precision GPS navigation and brilliant 5 in./12.7 cm color viewing detail and suprisingly affordable.

• Exclusive Lowrance down-looking sonar imaging innovation
• Detailed, automatic photo-like viewing locates prime fishing spots under the boat
• Easy-to-use with manual fine-tuning option
• Brilliant 5 in./12.7 cm 480x480 pixel SolarMAX™ 256-color TFT detail
• 2,400W peak-to-peak 300W RMS power
• Dual-coverage imaging; 455/800 kHz fishfinding
• TrackBack™ feature scrolls-back sonar history to review and set waypoints
• Built-in precision GPS antenna and detailed basemap U.S. inland waters and coasts*
• Multiple map/chart card options
• *Built-in world background map outside U.S.

With the incredible new standalone Elite-5 DSI imaging fishfinder with chartplotter, you?re equipped with a technologically new way to look at finding -- and fishing -- hot spots - clearly - precisely - and especially affordably.

Picture-Perfect Fishfinding
Exclusive Lowrance DownScan Imaging™ innovation displays crystal-clear photo-like views of the underwater worlds below the boat. No interpretation needed to see:

• Thermoclines Exposed - clearly see the boundary layer between the lower cooler water and, upper warmer, oxygen-rich zone where fish hang
• Fish Truly Revealed - Elite-5 DSI imaging leaves nothing to the imagination, clearly showing predator fish and baitfish schools
• Bottoms Uncovered - you easily distinguish between hard and soft bottoms, as well as fish and structure on/near the bottom
• Structure Disclosed - with photo-like views you can recognize all manner of structure at a glance, like bridge pilings, laydowns, ledges, drop-offs, vegetation, wrecks; no interpretation needed

Dual 455/800 kHz Coverage
Selectable 455 kHz sounding for wider and deeper sonar imaging coverage, with 800 kHz for enhanced viewing of targeted locations.

More Power (and Depth and Speed) to You
Elite-5 DSI fishfinders transmit 2,400W peak-to-peak/300W RMS power with recently-tested depths* to 200 ft./61 m, and impressive bottom readings at boat speeds up to 40 mph. Optimum imaging speed of 8 mph and under.

Advanced Transducer
Slim new low-profile, high-speed, transom-mount, 455/800 kHz Skimmer® DSI imaging transducer with exclusive down-looking crystal and built-in temp.

Precision GPS Position Accuracy
Internal, front-mounted, high-sensitivity 16-channel GPS antenna for superior navigation guidance, even when mounted in-dash. External antenna option available.

Multiple Map/Chart Options
Waterproof microSD media card slot accepts the most up-to-date mapcard options including Fishing Hot Spots® Pro USA and LakeMaster®  in the U.S., and Navionics® Gold worldwide.

Viewing Brilliance
Higher-resolution 5 in./12.7, 480x480 pixel SolarMAX™ 256-color TFT displays deliver unmatched viewing brightness and detail at wider angles and bright sunlight. Adjustable fluorescent cold-cathode backlit screen and keypad for low-light or night angling.

Pick Your Favorite Color
Expanded sonar imaging display color palette choices offers optimum viewing for personal preference and water/light conditions.

Full Automatic or Manual
Elite-5 DSI is so advanced it?s easy to use, with automatic fine-tuning for the best sonar imaging picture possible after power-up. Advanced User Mode for full manual control of settings.

TrackBack™ Into Sonar History
Enjoy immediate scroll-back of imaging sonar history to review covered water and pinpoint spots (saves time and fuel trying to re-trace your path). With Elite-5 DSI, mark a waypoint at your cursor location with a simple press of a button.

Easy to Install and Use
Unique new keypad and quick-release bracket design offers easy installation, plus one-hand viewing adjustment, operation at-speed, and removal/reinstall.

Interface Beauty
Simplified menu with text and icons for faster and easier selections.

Unique new fishfinding imaging, precision GPS navigation and brilliant 5 in./12.7 cm color viewing detail and suprisingly affordable.

• Exclusive Lowrance down-looking sonar imaging innovation
• Detailed, automatic photo-like viewing locates prime fishing spots under the boat
• Easy-to-use with manual fine-tuning option
• Brilliant 5 in./12.7 cm 480x480 pixel SolarMAX™ 256-color TFT detail
• 2,400W peak-to-peak 300W RMS power
• Dual-coverage imaging; 455/800 kHz fishfinding
• TrackBack™ feature scrolls-back sonar history to review and set waypoints
• Built-in precision GPS antenna and detailed basemap U.S. inland waters and coasts*
• Multiple map/chart card options
• *Built-in world background map outside U.S.

With the incredible new standalone Elite-5 DSI imaging fishfinder with chartplotter, you’re equipped with a technologically new way to look at finding -- and fishing -- hot spots - clearly - precisely - and especially affordably.

Picture-Perfect Fishfinding
Exclusive Lowrance DownScan Imaging™ innovation displays crystal-clear photo-like views of the underwater worlds below the boat. No interpretation needed to see:

• Thermoclines Exposed - clearly see the boundary layer between the lower cooler water and, upper warmer, oxygen-rich zone where fish hang
• Fish Truly Revealed - Elite-5 DSI imaging leaves nothing to the imagination, clearly showing predator fish and baitfish schools
• Bottoms Uncovered - you easily distinguish between hard and soft bottoms, as well as fish and structure on/near the bottom
• Structure Disclosed - with photo-like views you can recognize all manner of structure at a glance, like bridge pilings, laydowns, ledges, drop-offs, vegetation, wrecks; no interpretation needed

Dual 455/800 kHz Coverage
Selectable 455 kHz sounding for wider and deeper sonar imaging coverage, with 800 kHz for enhanced viewing of targeted locations.

More Power (and Depth and Speed) to You
Elite-5 DSI fishfinders transmit 2,400W peak-to-peak/300W RMS power with recently-tested depths* to 200 ft./61 m, and impressive bottom readings at boat speeds up to 40 mph. Optimum imaging speed of 8 mph and under.

Advanced Transducer
Slim new low-profile, high-speed, transom-mount, 455/800 kHz Skimmer® DSI imaging transducer with exclusive down-looking crystal and built-in temp sensor.

Precision GPS Position Accuracy
Internal, front-mounted, high-sensitivity 16-channel GPS antenna for superior navigation guidance, even when mounted in-dash. External antenna option available.

Multiple Map/Chart Options
Waterproof microSD media card slot accepts the most up-to-date mapcard options including Fishing Hot Spots® Pro USA and LakeMaster®  in the U.S., and Navionics® Gold worldwide.

Viewing Brilliance
Higher-resolution 5 in./12.7, 480x480 pixel SolarMAX™ 256-color TFT displays deliver unmatched viewing brightness and detail at wider angles and bright sunlight. Adjustable fluorescent cold-cathode backlit screen and keypad for low-light or night angling.

Pick Your Favorite Color
Expanded sonar imaging display color palette choices offers optimum viewing for personal preference and water/light conditions.

Full Automatic or Manual
Elite-5 DSI is so advanced it?s easy to use, with automatic fine-tuning for the best sonar imaging picture possible after power-up. Advanced User Mode for full manual control of settings.

TrackBack™ Into Sonar History
Enjoy immediate scroll-back of imaging sonar history to review covered water and pinpoint spots (saves time and fuel trying to re-trace your path). With Elite-5 DSI, mark a waypoint at your cursor location with a simple press of a button.

Easy to Install and Use
Unique new keypad and quick-release bracket design offers easy installation, plus one-hand viewing adjustment, operation at-speed, and removal/reinstall.

Interface Beauty
Simplified menu with text and icons for faster and easier selections.

• Waterproof, powered hub for wideband Ethernet data sharing
• For HDS and add-on module networking and earlier Lowrance models with 5-pin connector
• Transmits sonar graphing display/control on HDS-M series chartplotters when networked with HDS sonar displays
• Connects up to five compatible displays and Ethernet modules
• Advanced VHF radio band noise rejection

NEP-2 is a plug-and-play powered hub for sharing sonar, StructureScan™ Sonar Imaging, Broadband 3G Radar or HD Digital Radar and LWX-1 SIRIUS® Satellite Weather data between multiple HDS® displays across an onboard network.

Also compatible with 2007 and later LCX, LMS and GlobalMap® models with 5-pin Ethernet connector for networking multiple displays.

Fully waterproof and resists corrosive marine environments. Unused connector ports feature waterproof caps for added protection for future expansion.

Flush moutn kit for use with 5" Elite and Mark series products.

16 channel, low-profile, GPS module w/20 ft cable.

Works with: Elite-5, Elite-5, Elite-5, Elite-5 DSI, Elite-5 DSI, Elite-5 DSI, Elite-5m, Elite-5m, Elite-5m

Feature-packed off-road GPS navigation with a brilliant, easy-to-view color display.

• Internal 16-channel GPS+WAAS antenna plus external LGC-16W GPS antenna
• Brilliant 5 in./12.7 cm SolarMAX™ PLUS high-detail color display enhances viewing in sunlight and at wide angles
• Built-in U.S. basemap
• Fully loaded with GPS features and functions with simplified menu
• Saves 3,000 waypoints; 100 routes and 100 retraceable plot trails
• Keypad design for smooth one-hand operation
• MicroSD media card slot
• Includes FM-ME5 dash flush-mounting kit

Popular and proven Lowrance off-road GPS performance in a bright 5 in. color display makes a perfect fit for tighter, off-highway vehicle interiors. Built-in 16-channel GPS+WAAS antenna precision, plus external antenna option included

The new color Elite-5m Baja Chartplotter delivers high navigation performance and high color for your off-road journeys, and at a very affordable low price. All provide any vehicle with incredible precision and functionality, in addition to a spectacular new view.

The brilliant 5 in./12.7 cm, 480x480 pixel SolarMAX™ 256-color TFT display has unmatched screen brightness, contrast, resolution and viewing detail at wider angles. Adjustable screen and keypad backlight improves usability and visibility day or night.

The internal 16-channel GPS antenna and external LGC-16W GPS antenna provide great WAAS-enabled precision for navigation. Built-in memory allows for up to 3,000 waypoints, 100 routes/100 waypoints per route and 100 retraceable plot trails/up to 10,000 points per trail. All of this, packaged with easy-to-use menus with Advanced Mode to expand features selection

DISPLAY

Display Size	5 in 127 mm
Display Resolution	480x480 (H x W)
Display Type	256-color SolarMAX™ PLUS TFT
Backlighting	Flourescent cold cathode
Backlighting Levels	Adjustable screen/keypad
Languages Supported	23



GPS / NAVIGATION

NETWORKING / CONNECTORS

TECHNICAL / ENVIRONMENTAL

POWER

OTHER

Lowrance Link-5 DSC VHF - Fixed Mount Radio

Marine VHF radio delivers the latest Class D DSC functionality for an unbeatable price

The Lowrance Link-5 marine VHF system is compact and affordable with an ultra-rugged waterproof (IPX7) chassis. Meeting the latest international compliance standards, the Link-5 delivers the ultimate reliability and performance, for unparalleled safety and communication on-the-water, anywhere in the world.

Link-5 offers a best-in-class microphone with six quick keys for simple and reliable helm operation, plus a built-in speaker that delivers clear audio that is easy to hear - even with the ambient noise typically associated with boating. It also features an easy-grip rubber molding cover for secure holding and operation.

Safety is always a concern; Lowrance designed the Link-5 for clear and simple Class D DSC operation. Link-5 features an efficient, extra-large rotary knob interface for easy channel changing, menu navigation and setting control. Clear display of GPS lat/lon data is presented on a 1 x 1.8 in (2.6 x 4.6 cm) LCD display with adjustable backlighting. Delivering all USA, Canadian and International marine channels, the system provides easy access to all DSC functions. The Lowrance Link-5 features an extra large Channel 16 key, dedicated volume and squelch knobs, weather keys, selectable Dual and TriWatch modes, local and distant functions, and three user-programmable ("favorites") channels.

Equipped with memory retention, the radio logs up to 10 distress calls and 20 individual DSC calls. DSC control keys include (priority) 16/9, WX, 3CH/+/- for quick channel changing, CALL, EXIT, SCAN and MENU. Additional system features include a rotary volume control with power on/off, all-channel priority and memory channel scans, 20 user-programmable names with MMSI, 10 weather channels with a 1050 Hz tone alert and a second receiver for incoming DSC messages on Channel 70.

Offering selectable 25/1-watt transmit power and NMEA 0183 compatibility, the Link-5 includes a flush-mount kit, wires for 4-watt external speakers, a PL259 connection for optional 2.4 m and 1 m fiberglass antennas. Stainless-steel and nylon antenna mounts are available from Lowrance, too.

The Lowrance Link-5 radio is protected by a 2-year limited warranty, and supported for an additional three years by the Lowrance 5-Year Advantage Program.

Features

• Class D compliant with dedicated DSC transceiver

• Selectable 25 watts transmit power/1 watt low power mode

• Easy to use interface and backlit LCD

• Highest quality easy grip rubber fist microphone with speaker

• XL Channel 16/9 key and rotary knob

• Quick "favorites" channel access

• Dedicated volume and Squelch knob

• NOAA weather alerts

HDS-5x Multifunction Fishfinder

NEW SOLARMAX™ PLUS DISPLAY

• Exclusive, enhanced high brightness 480x480-pixel 5-inch display for the truest fishfinding and navigation viewing detail
• Sunlight viewable with brighter, clearer, wider-angle viewing
• Screen/keypad backlighting

HIGH-DEFINITION FISHFINDING

Award-winning Broadband Sounder technologies inside the HDS-5 produces the best Lowrance fishfinding ever!

• Superior clarity and up to an astounding 120-degree view of fish- and structure-finding coverage.
• Phenomenal separation of fish targets from structure, baitfish, thermoclines, clutter and bottom.
• Improved underwater fish-holding structure identification; channels, rock piles, stump beds, submerged standing timber, drop-offs and more.
• Exceptional fish-finding performance in any water/weather situation, at all depths and at any speed.
• Peerless bottom tracking performance now with up to 8X zoom range.
• New, multiple choices of display color palettes for marking fish in all water/weather conditions.
• COLORLINE™ greatly improves target definition and separation, plus defines bottom composition.
• Fully loaded with legendary Lowrance performance fishfinder features and functions.
• Transducer 50/83/200 kHz frequency capable ? expanded range of transducers available including patented Skimmer® transom mount 83/200 and 50/200 depth-temp transducers.

EVEN EASIER EASE-OF-USE

• New and unique menu display enhances quicker and easier access to most-used features
• Improved keyboard design for improved angler control in all weather conditions
• Attractive new case design that is easier to install

ADVANCED NETWORKING & EXPANDABILITY

• Simplified high-speed Ethernet-based networking shares useful sonar, navigation and radar data
• NMEA 2000® network connectivity for easy multi-station data sharing to monitor and display boat operation systems via onboard and engine sensors
  • Maximize fuel economy with Fuel Flow sensors or digital Engine Interface sensors.
  • Precision temperature sensor option for surface water, livewell, baitwell, cabin and/or engine room readings.
  • Compatible with all other NMEA 2000®-certified sensors from Lowrance -- including speed, fluid level and pressure sensors ? or other manufacturers.
•  NMEA 0183 compatible

HDS-5x MODEL CHOICES
HDS-5X 83/200 kHz #140-27
HDS-5x 50/200 kHz #140-28
HDS-5x without transducer #140-29

Lowrance announces the availability of the new Elite-5 Ice Fishing Machine, complete with the popular and proven Lowrance Elite-5 combo color sonar/chartplotter, complete with special ice mode software, and exclusive portable Ice Pack system.

• Super-bright, 5 in./12.7 cm TFT color display, with 480x480 pixel detail, and superb no-fade viewing detail in sunlight and temps down to -20° F/-28° C
• Powerful 200 kHz operation with 20° sonar coverage down to 1,000 ft/305 m with custom, weighted ice-fishing transducer and unique new Ice Transducer Float (included)
• Precision internal 16-channel GPS antenna, built-in basemap with U.S. waters detail, and microSD card slot for LakeMaster® and Navionics® cartography options

Complete with PPP-18I Ice Pack portability extras ?

• Weatherproof soft-side pack with zippered front and rear access
• Accessory zippered pockets plus ?easy-find? mesh stow pouches
• Adjustable display platform elevates for easier viewing
• Includes tackle trays, rod-holder slots, quick-access lure storage conveniences
• Handy storage for two StowAway® utility  boxes (included)
• Holds two 12 vDC sealed batteries and charger (one battery and charger included)

Incredible new imaging fishfinder with spectacular color to positively improve your fishing image and success for a surprisingly low price.

• Exclusive Lowrance down-looking sonar imaging innovation
• Detailed, automatic photo-like viewing locates prime fishing spots under the boat
• Easy-to-use with manual fine-tuning option
• Brilliant 5 in./12.7 cm 480x480 pixel SolarMAX™  256-color TFT detail
• 2,400W peak-to-peak 300W RMS power
• Dual-coverage imaging; 455/800 kHz fishfinding
• TrackBack™ feature scrolls-back sonar history

With the incredible new standalone Elite-5x DSI imaging fishfinder, you’re equipped with a technological new edge improve your success in finding -- and fishing -- hot spots - clearly - precisely - and especially affordably.

Picture-Perfect Fishfinding
Exclusive Lowrance DownScan Imaging™ innovation displays crystal-clear photo-like views of the underwater worlds below the boat. No interpretation needed to see:

• Thermoclines Exposed - clearly see the boundary layer between the lower cooler water and, upper warmer, oxygen-rich zone where fish hang
• Fish Truly Revealed - Elite-5x DSI imaging leaves nothing to the imagination, clearly showing predator fish and baitfish schools
• Bottoms Uncovered - you easily distinguish between hard and soft bottoms, as well as fish and structure on/near the bottom
• Structure Disclosed - with photo-like views you can recognize all manner of structure at a glance, like bridge pilings, laydowns, ledges, drop-offs, vegetation, wrecks; no interpretation needed

Dual 455/800 kHz Coverage
Selectable 455 kHz sounding for wider and deeper sonar imaging coverage, with 800 kHz for enhanced viewing of targeted locations.

More Power (and Depth and Speed) to You
Elite-5x DSI fishfinders transmit 2,400W peak-to-peak/300W RMS power with recently-tested depths* to 200 ft./61 m, and impressive bottom readings at boat speeds up to 40 mph. Optimum imaging speed of 8 mph and under.

Advanced Transducer
Slim new low-profile, high-speed, transom-mount, 455/800 kHz Skimmer® DSI imaging transducer with exclusive down-looking crystal and built-in temp sensor.

Viewing Brilliance
Higher-resolution 5 in./12.7, 480x480 pixel SolarMAX™ 256-color TFT displays deliver unmatched viewing brightness and detail at wider angles and bright sunlight. Adjustable fluorescent cold-cathode backlit screen and keypad for low-light or night angling.

Pick Your Favorite Color
Expanded sonar imaging display color palette choices offers optimum viewing for personal preference and water/light conditions.

TrackBack™ Into Sonar History
Enjoy immediate scroll-back of imaging sonar history to review covered water and pinpoint spots (saves time and fuel trying to re-trace your path). With Elite-5x DSI, mark a waypoint at your cursor location with a simple press of a button.

Easy to Install and Use
Unique new keypad and quick-release bracket design offers easy installation, plus one-hand viewing adjustment, operation at-speed, and removal/reinstall.

Interface Beauty
Simplified menu with text and icons for faster and easier selections

See more, find more and pay less - the innovative new Mark-5x DSI imaging fishfinder with high-detail 5 in./12.7 cm sunlight-enhanced viewing.

• Exclusive Lowrance down-looking imaging innovation
• Detailed, automatic photo-like viewing locates prime fishing
  spots under the boat
• Easy-to-use with manual
  fine-tuning option
• High-detail 5 in./12.7 cm
  480x480 pixel FSTN display
• 2,400W peak-to-peak
  300W RMS power
• Dual-coverage imaging;
  455/800 kHz fishfinding
• TrackBack™ feature
  scrolls-back sonar history

With the amazing new standalone Mark-5x DSI imaging fishfinder with chartplotter, you’re equipped with a technologically new way to look at finding -- and fishing -- hot spots - clearly - precisely - and especially affordably.

Picture-Perfect Fishfinding
Exclusive Lowrance DownScan Imaging™ innovation displays crystal-clear photo-like views of the underwater worlds below the boat. No interpretation needed to see:

• Thermoclines Exposed - clearly see the boundary layer between the lower cooler water and, upper warmer, oxygen-rich zone where fish hang
• Fish Truly Revealed - Mark-5x DSI imaging leaves nothing to the imagination, clearly showing predator fish and baitfish schools
• Bottoms Uncovered - you easily distinguish between hard and soft bottoms, as well as fish and structure on/near the bottom
• Structure Disclosed - with photo-like views you can recognize all manner of structure at a glance, like bridge pilings, laydowns, ledges, drop-offs, vegetation, wrecks; no interpretation needed

From Lowrance industry-leading innovation comes the versatile new Lowrance X-4 Pro 83/200 kHz sonar for productive shallow and deepwater fishfinding coverage, with superb target detail and separation, for both inland lakes or coastal angling. Packed with an advanced receiver design and a wealth of features, the new X-4 Pro is easy-to-use and easy-to-afford.

Featuring

• Sunlight-viewable 4 in./10.2 cm Film SuperTwist™ LCD display
• Detailed 240V x 160H pixel resolution with 4-level gray scale
• 83/200 kHz dual-search Skimmer® transom-mount transducer w/temp sensor and up to 120° expanded fish detection coverage ? operates at boat speeds up to 70 mph/61 kts
• 1,500W peak-to-peak/188W RMS power
• Depths to 1,000 ft./305 m @ 83 kHz
• Automatic ASP™ tuning for the best picture possible
• GRAYLINE® enhances target separation and helps define bottom composition
• Advanced Fish I.D.™ fish symbols with FishTrack™ target depth readings viewing option
• Automatic ranging with instant screen updates
• Auto and Zoom bottom track
• Deep/shallow/fish alarms
• Completely sealed and waterproof for harshest environments
• One-year limited warranty

Great for go-anywhere fishfinding ease on kayaks, row boats, or virtually any watercraft that floats.

The X-4 Portable features the X-4 packed inside a waterproof soft-sided zippered case that includes sturdy mounting base, Skimmer® 200 kHz transducer with suction-cup mounting* and battery power pack for eight D-cell batteries (batteries not included).

Featuring

• Sunlight-viewable 4 in./10.2 cm Film SuperTwist™ LCD display
• Detailed 240V x 160H pixel resolution with 4-level gray scale
• High-speed 200 kHz Skimmer® transom-mount transducer w/temp sensor and up to 60° of fish detection coverage ? operates at boat speeds up to 70 mph/61 kts
• 800W peak-to-peak/100W RMS power ? depths to 600 ft./183 m
• Automatic ASP™, GRAYLINE®, Advanced Fish I.D.™, FishTrack™ features

For simple to use fish-finding with incredible Lowrance features and excellent, detailed viewing, you just can?t beat the new X-4 for it?s performance and price!

Featuring

• Sunlight-viewable 4 in./10.2 cm Film SuperTwist™ LCD display
• Detailed 240V x 160H pixel resolution with 4-level gray scale
• High-speed 200 kHz Skimmer® transom-mount transducer w/temp sensor and up to 60° of fish detection coverage ? operates at boat speeds up to 70 mph/61 kts
• 800W peak-to-peak/100W RMS power ? depths to 600 ft./183 m
• Automatic ASP™, GRAYLINE®, Advanced Fish I.D.™, FishTrack™ features

Iceafishing bag with ice transducer for Elite and Mark series.

Exclusive new Lowrance PPP-18I Ice Pack
The easiest-to-use and the most affordable and complete portable accessory system ever from Lowrance.

Ideal for all Mark™, Elite™, X-4, X-4 Pro, and HDS-5 displays, and similar earlier models.

• Weatherproof soft-side pack with zippered front and rear access
• Accessory zippered pockets plus "easy-find" mesh stow pouches
• Adjustable display platform elevates for easier viewing
• Weighted uniplug 200 kHz ice fishing transducer and unique new ice transducer float (HDS-5 use requires Adaptor HDS-5 PPP17/18I option)
• Includes tackle trays, a holder, quick-access lure storage conveniences
• Handy storage for two StowAway® utility boxes (included)
• Holds two 12 vDC 7A sealed batteries and charger (one battery and charger included)

50/200 khz Dual Frequency, 600 W RMS, in a low-profile housing. Flush design that minimizes drag.

Works with: HDS-10, HDS-5, HDS-5x, HDS-7, HDS-8

Nautic Insight HD East
Part #: 000-10643-001

Nautic Insight HD East is superb with U.S. coastal and offshore saltwater coverage to find productive marine fishing fast.

Inshore/offshore coverage from Maine, around Florida, and Gulf Coast to all of Texas with Fishing Hot Spots marked fishing areas; select Bahamas region charting.

Features:

• Four Times the Detail of Built-In HDS Insight Maps

• Eight More Zoom Levels of Shaded Relief Data

• Find Fish Faster With Exclusive Fishing Hot Spots

• Loads of Free Space to Save Sonar and Navigation Data

• Expansive Marine Charting Plus Inland Lakes Coverage

• High-detail inshore/offshore contour lines with high-resolution shaded (dimensional) relief viewing

• 8 m/pixel resolution up to canyons

• 32 m/pixel beyond canyons detail

• User-selectable depth contour lines on/off

• Exclusive Fishing Hot Spots coastal and offshore marked fishing spots with fishery details and fishing tips

• Accurate navaids and information

• Tides and currents displays

• Lake Insight HD inland lake mapping detail, including Fishing Hot Spots lakes data, within 100 miles of the coast

Nautic Insight Pro
Part #: 000-10666-001

Lowrance Nautic Insight Pro with superb U.S. coastal and offshore saltwater coverage to find productive marine fishing fast. Four times the deail of built-in HDS Insight maps.

The Nautic Insight Pro has detailed mapping for Lowrance chartplotters. Similiar to the Nautic Insight HD in geographic, bathymetric and POI details, but without shaded relief overlay. Included is the same East Coast, West Coast and Hawaii coverage -- all on a single chartcard!

Features:

• High-detail inshore/offshore contour lines with high-resolution shaded (dimensional) relief viewing

• 8 m/pixel resolution up to canyons

• 32 m/pixel beyond canyons detail

• User-selectable depth contour lines on/off

• Exclusive Fishing Hot Spots coastal and offhsore marked fishing spots with fishery details and fishing tips

• Accurate navaids and information

• Tides and currents displays

• Lake Insight HD inland lake mapping detail, including Fishing Hot Spots lakes data, within 100 miles of the coast

Elite-4x Fishfinder

The brighter display with 3.5"/8.9cm screen offers best viewing in any boating condition.

The Elite-4x is a dedicated standalone fishfinder that comfortably fits the tightest spaces and budgets for finding fish, structure or great diving spots. At the best price imaginable, the Elite-4x brings proven Lowrance® performance to serious anglers-in addition to unmatched screen brightness, contrast and resolution.

The 300W RMS sounder reaches to depths of 800’/243M with its dual-frequency 83/200 kHz Skimmer® transom-mount transducer including internal water-temp sensor and up to 120° of wider sonar coverage- at 83 kHz operation. Lowrance’s exclusive TrackBack™ feature offers immediate scroll-back to review up to four pages of fishfinder history.

Packed with easy-to-use menus - plus Advanced Mode to expand features selection - the all-new case/mounting design provides for easy one-hand tilt/swivel view adjustment, removal and re-install.

• Brighter LED backlighting

• Exclusive TrackBack™ feature

• Best-in-class Lowrance fishfinder technology

• Easy-to-use menu page and menu controls

• Quick-release tilt and swivel bracket

• Lowrance 5 Year Advantage Service

Elite-4x IceMachine™

Brighter display with 3.5"/8.9cm screen offers best viewing in any boating condition.

The Elite-4x is a dedicated standalone fishfinder that comfortably fits the tightest spaces and budgets for finding fish, structure or great diving spots. At the best price imaginable, the Elite-4x brings proven Lowrance® performance to serious anglers-in addition to unmatched screen brightness, contrast and resolution.

The 300W RMS sounder reaches to depths of 800’/243M with its dual-frequency 83/200 kHz transducer including internal water-temp sensor and up to 120° of wider sonar coverage- at 83 kHz operation. Lowrance’s exclusive TrackBack™ feature offers immediate scroll-back to review up to four pages of fishfinder history.

Packed with easy-to-use menus - plus Advanced Mode to expand features selection - the all-new case/mounting design provides for easy one-hand tilt/swivel view adjustment, removal and re-install.

• The Elite-4x IceMachine™ includes Elite-4x fishfinder display and a weatherproof soft-sided pack with front- and rear-zipper access

• Zippered accessory pockets and "easy-find" mesh pouches

• Adjustable display platform for easy viewing

• Display platform features tackle trays, rod-holder slots and quick-access lure storage

• Storage space for two StowAway® utility boxes (included)

• 12v battery and charger included

• Brighter LED backlighting

• Exclusive TrackBack™ feature

• Best-in-class Lowrance fishfinder technology

• Easy-to-use menu page and menu controls

• Quick-release tilt and swivel bracket

• Lowrance 5 Year Advantage Service

Elite-4x DSI Fishfinder

The incredible imaging fishfinder with spectacular color to positively improve your fishing image and success for a surprisngly low price.

• Brighter LED backlighting

• Exclusive TrackBack™ feature

• Downscan Imaging™ reveals easy-to-understand photo-like underwater detail

• Easy-to-use menu page and menu controls

• Simplified menu navigation

• Quick-release tilt and swivel bracket

• Lowrance 5 Year Advantage Service

• Thermoclines Exposed - clearly see the boundary layer between the lower cooler water and, upper warmer, oxygen-rich zone where fish hang

• Fish Truly Revealed - Elite-4x DSI imaging leaves nothing to the imagination, clearly showing predator fish and baitfish schools

• Bottoms Uncovered - you easily distinguish between hard and soft bottoms, as well as fish and structure on/near the bottom

• Structure Disclosed - with photo-like views you can recognize all manner of structure at a glance, like bridge pilings, laydowns, ledges, drop-offs, vegetation, wrecks; no interpretation needed

Elite-4M Chartplotter Gold Americas

At an affordable low price the Elite-4m is the ideal choice for the tightest spaces on smaller boats, or as a second GPS-only display. With outstanding built-in features of integrated, accurate GPS antenna, world-wide background map with enhanced US lakes and rivers and coastal contours - plus a microSD slot for expanding chart options the Elite-4m is compatible with Fishing HotSpots and Navionicsr Gold and Premium map-cards options.

Built-in memory allows for up to 3,000 waypoints, 100 routes/100 waypoints per route and 100 retraceable plot trails/up to 10,000 points per trail.

Packed with easy-to-use menus--plus Advanced Mode to expand features selection. The all-new case/mounting design provides for easy one-hand tilt/swivel view adjustment, removal and re-install.

Features

HDS-5m Gen2 Nautic Insight Chartplotter
000-10520-001

Lowrance HDS-5m Gen2 Chartplotter

• New, fastest HDS® ever

• Realtime StructureMap™ capability

• Super-accurate, internal GPS antenna

• High-bright, sunlight-viewable display with cold-cathode, fluorescent backlighting.

• TrackBack™ feature to review sonar history and save waypoints on key locations.

• Built-in Insight™ USA mapping option (Americas models) or Navionics® world background map.

• High-detail mapping options including Insight HD, Navionics® Platinum+ with TurboVIew™, and Fishing Hot Spots® PRO

• NMEA 2000® and high-speed Ethernet networking options

• Two-year limited warranty

Mark-4 Chartplotter/Fishfinder

The Mark-4 has easy-to-use menus and fast installation. The high-bright, sunlight-viewable, grayscale display is packed with all the features you could want.

The Mark-4 includes impressive detail on the 3.5 in/8.9 cm screen that virtually expands to 4X its size with the integrated TrackBack feature. TrackBack gives you greater control of your time on the water. Simply move the cursor back through sonar-display history, quickly identify baitfish, game-fish or structure and save a waypoint.

Includes a low-profile, high-speed, transom-mount, 83/200 kHz Skimmerr transducer with built-in temp sensor, and trolling motor-mount bracket option.

The Mark-4 is easy-to-install with a quick-release mounting system featuring tilt and swivel bracket for plug-and-play use. Or, it can be flush-mounted using the accessory mounting-kit option. For fast and smooth one-hand operation, the Mark-4 design includes easy-to-use page and menu controls. The simplified menus makes it easy to learn and use right out of the box.

Comes preloaded with a detailed basemap, and is compatible with Fishing Hotspotsr Pro, Navionicsr Gold and Premium charting upgrades through the built-in, waterproof microSD card slot.

Features

Elite-4 Fishfinder/Chartplotter

Great value - High-performance color fishfinder/chartplotter

Elite-4 IceMachine™

Never before has a compact chartplotter/fishfinder been designed specifically to meet both the performance standards and the value demanded by anglers and boaters.

Elite-4 is much more than a compact product, with all the proven Lowrance® features you could want, plus the brightest LED backlit displays-providing clear viewing in any boating condition. The 300W RMS sounder reaches to depths of 800 ft/243 m with its dual-frequency 83/200 kHz transducer including internal water-temp sensor and up to 120° of wider sonar coverage- at 83 kHz operation.

And the exclusive TrackBack™ feature lets you scroll back through four pages of sonar-display history to review targets in closer detail and save waypoints. Built-in memory allows for up to 3,000 waypoints, 100 routes/100 waypoints per route and 100 retraceable plot trails/up to 10,000 points per trail.

The Elite-4 is easy-to-install with a quick-release mounting system featuring tilt and swivel bracket for plug-and-play use. Or, it can be flush-mounted using the accessory mounting-kit option. For fast and smooth one-hand operation, the Elite-4 design includes easy-to-use page and menu controls. The simplified menus make the Elite-4 easy to learn and use right out of the box.

Comes preloaded with a detailed basemap, and is compatible with Fishing Hotspots® Pro, Navionics™ Gold and Premium charting upgrades through the built-in, waterproof microSD card slot.

• The Elite-4 IceMachine™ includes Elite-4 fishfinder/chartplotter combination display and a weatherproof soft-sided pack with front- and rear-zipper access

• Zippered accessory pockets and "easy-find" mesh pouches

• Adjustable display platform for easy viewing

• Display platform features tackle trays, rod-holder slots and quick-access lure storage

• Storage space for two StowAway® utility boxes (included)

• 12v battery and charger included

• Brighter LED backlighting

• Exclusive TrackBack™ feature

• Best-in-class Lowrance fishfinder technology

• Easy-to-use menu page and menu controls

• Quick-release tilt and swivel bracket

• Accurate internal GPS antenna

• MicroSD cardslot for high-detail mapping options

• Lowrance 5 Year Advantage Service
