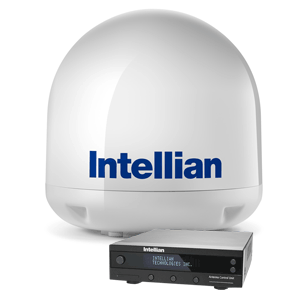

i3 US System 15" w/ North Americas LNB

The Intellian i3 provides superior tracking performance compared to antenna systems of a similar size. With its stylish dome, the i3 is ideal for boats over 8m (25ft). The i3’s high signal gain makes it the best performing 37cm (15in) antenna system available today.

Features:

• Built in Wi-Fi enables one touch diagnostic and updates from your PC or iOS device
• Auto satellite switching function from your remote control
• Compatible with leading satellite TV service providers around the world
• 60° per second turn rate ensures signal tracking at high speeds and in rough seas
• Travel further North or South with an extended elevation range of 10° to 80°
• Built in GPS enables faster signal acquisition
• Simplicity of design, no external compass or rate sensors required
• Built-in HD module for Ku-band HD TV reception
• Receiver Required - Sold Separately

High Performance

You will never have to compromise on reception or quality. The i3 offers the highest signal strength available along with Intellian’s patented iQ² Technology. The slightly larger reflector and radome size over the i2 improve range and allow for a more ruggedized design, making the i3 ideal for vessels traveling at higher speeds or further into offshore waters.

Constant & Seamless Entertainment

With innovative technologies, the i3 always maintains the highest signal strength available and ensures crystal-clear TV reception.

Intellian’s super-efficient 37cm (15 inch) diameter antenna provides constant, seamless reception while the vessel is moored, at anchor, motoring along the coast or cruising offshore. The i3 2-axis antenna features a built-in GPS which can accelerate the satellite signal acquisition time while boats with conventional antennas are left watching “SEARCHING FOR SATELLITE” on their screen.

Automatic Satellite Switching

DISH (US) and Bell TV (Canada) users will benefit from using an Intellian MIM (Multi-Satellite Interface Module) . The Intellian MIM is required to facilitate automatic switching between satellites for these services, allowing boaters to enjoy changing channels with automatic satellite switching just like a home system. See the Intellian MIM product guide for further details.

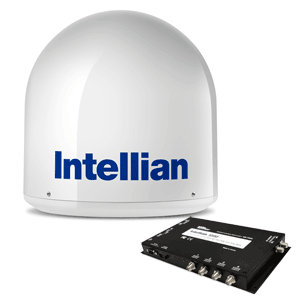

i2 US 13" System with North Americas LNB

Compact and lightweight, the Intellian i2 delivers exceptional TV reception. Equipped with Intellian’s iQ2technologies, the i2 delivers stable, quiet, dependable performance and superior value in the smallest size antenna available.

High Performance
The Intellian i2 is the world’s first high-performance, compact satellite TV system with an integrated HD module. This state-of-the-art functionality provides premium high-definition HD, when available, and standard SD programming broadcasts from satellite TV providers around the world.

Constant & Seamless Entertainment
With innovative, patented iQ2 technologies, the i2 always maintains the highest signal strength available to ensure crystal-clear TV reception. Intellian’s super-efficient 33cm (13 in) diameter antenna provides constant, seamless reception while the vessel is moored, at anchor, or cruising offshore. Connecting a GPS to the i2 allows it to lock onto a signal even faster, while boats with conventional antennas are left watching "SEARCHING FOR SATELLITE" on their screen.

Automatic Satellite Switching
DISH Network (US) and Bell TV (Canada) users will benefit from using an Intellian MIM (Multi-Satellite Interface Module) . The Intellian MIM (M2-TD02) sold separately and is required to facilitate automatic switching between satellites for these services, allowing boaters to enjoy changing channels with automatic satellite switching just like a home system.

i2 Features:

Fully Automated System:

• Automatic Satellite Search and Identification Function
• 2-axis Stabilization provides high speed tracking

High Performance Antenna:

• 33cm (13in) diameter, parabolic antenna for receiving Ku-Band satellite signals
• Circular or linear polarization depending on region and LNB selected
• Built-in HD module for Ku-band HD TV reception

iQ2 Quick & Quiet Technology:

• iQ2 Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort

Antenna Control Unit:

• Intuitive controls and digital satellite information display on the ACU
• Automated updates and diagnostics via Aptus
• Simple antenna status quick reference

Multiple Receiver Capability:

• Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
• Using the MIM, a master receiver can be selected to control the target satellite
• In North America, when using Dish Network or Bell TV, a MIM (M2-TD02)
  is required,
  enabling automatic satellite switching from your remote control just like at home

Compact Size:

• 37cm (14.6 inch) antenna radome diameter
• Very light antenna weighs less than 4.5 kg (10 pounds)

3-Year Global Warranty:

• Industry leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment

Additional Features:

• Smaller size with better performance Auto satellite switching function for three satellites
• Compatible with leading satellite TV service providers around the world in rough seas
• 60° per second turn rate ensures signal tracking at high speeds and in rough seas
• Travel further North or South with an extended elevation range of 10° to 80°
• Simplicity of design, no fragile compass and no rate sensors
• Built-in HD module for Ku-band
• 3-Year global warranty
• Receiver Required - Sold Separately

All Americas™ LNB

Intellian All Americas™ LNB is a dual-band circular LNB (Low Noise Block) unit for continuous reception of satellite TV programming throughout the Americas.

Designed and manufactured by Intellian’s in-house engineering, the All-Americas™ LNB combines two circular polarized LNB receivers into one device to ensure seamless and uninterrupted satellite TV service across multiple satellite coverage areas. With the press of a remote control button on the Antenna Control Unit, boaters can switch between DIRECTV, DISH Network or Bell TV in North America and DIRECTV Latin in Central and South America.

Offering affordable and flawless access to the greatest number of channels at sea, Intellian’s new All-Americas™ LNB presents commercial and recreational boaters with a convenient, continuous satellite TV solution for optimum entertainment throughout the Western Hemisphere.

• All Satellite Systems include the following parts as standard:

• Antenna & Radome 60 cm (24?) Reflector & LNB

• ACU (Antenna Control Unit)

• PC Controller Program (Software CD included)

• Installation & Operation Manual

• Installation Template

• Quick Installation Guide

• ACU Table Mounting Bracket x 2EA

• 15m (49 ft) x 1EA Antenna-ACU RG6 Coaxial Cable

• 3m (10 ft) x 1EA ACU-IRD RG6 Coaxial Cable

• 10m (33 ft) x 1EA DC Power Cable

• 1.8m (6 ft) x 1EA PC Serial Cable

• Connectors & Screws

• Radome Height: 62.7cm / 24.7"

• Radome Diameter: 61cm / 24"

• Reflector Diameter:53.5cm / 21"

• Weight: 17.3kg / 38lbs

• Operating Temp. Range: -25°C to +55°C / -13°F to +131°F

• Storage Temp. Range: -40°C to +80°C / -40°F to +176°F

• Water Ingress: IPX6

• Approvals: CE / FCC

• Warranty: 3 year parts and 2 year labor

• Reception Frequency: Ku-band (10.712.75GHz)

• Polarization: RHCP / LHCP

• Minimum EIRP: 47dBW

• Azimuth Range: 680L

• Elevation Range: 0° to +90°

• Ship’s Motion Roll: ±25°, Pitch ±15°

• Roll & Pitch Response Rate: 50° / sec

• Turning Rate: 50° / sec

• RF Output: Dual Output

• Dimensions (WxDxH): 17.8cm x 21.7cm x 5.4cm / 7" x 8.5" x 2.1"

• Weight: 1.2kg / 2.6lbs

• Display: 2 line 20 character VFD module

• GPS Interface: Built-in (NMEA 0183 GPS)

• Power Requirement: 9.030.0V DC

• Power Consumption: Typ. 30W, Max. 50W

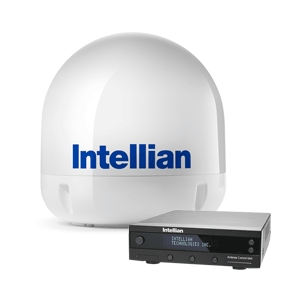

s6HD US Ku-Ka Dual Band HD System with 23.6" Reflector

**THIS ITEM SHIPS VIA TRUCK FREIGHT**

Don’t miss your chance to have a true DIRECTV home watching experience at a fraction of the cost! with DIRECTV HD at Sea!

Intellian s6HD is a digital marine satellite TVRO (Receive Only) antenna system specially designed for DIRECTV services for all types of vessels (anchored or in transit) to automatically identify, track and capture satellite signals from the Digital Video Broadcasting (DVB: the International standard for digital TV transmissions) compatible satellites.

The s6HD, with its unique triple feedhorn, is designed to receive Ku-band and Ka-band signals from all three DIRECTV satellites simultaneously. This provides continual access to all DIRECTV programming, including all Standard (SD) and High Definition (HD) channels. The s6HD is also compatible with general Ku-band receivers such as DISH Network, Bell TV, and DIRECTV local channel programming services. Combined with the built-in WiFi enables simple one-touch upgrades using the Aptus App.

These state-of-the-art capabilities require advanced antenna performance. Because the antenna can process all three signals at the same time, you won’t experience any delay when switching channels. This also enables the channel guide data to remain constantly up-to-date.

Further, multiple television sets onboard will be able to tune in to any program, independent of what other sets might be watching. (The standard s6HD system supports up to 16 receivers and is expandable to 32 receivers.) The s6HD antenna system incorporates advanced Intellian technology which allows boaters to enjoy rock-solid signal tracking regardless of oceanic conditions. Easy to install and operate, no other system better exemplifies Intellian’s truly effortless plug-and-play experience. This breakthrough technology means that you can watch TV on board or at sea just like when you’re at home.

Features:

• Simultaneous reception of 3 DIRECTV satellites
• Receives HDTV channels from 3 primary DIRECTV’s Ka-band and Ku-band satellites located at 99xW, 101xW and 103xW
• No delay time or changing the satellite signal, you can simultaneously watch every DIRECTV channels
• Multi-band alignment control systems
• Keeps the multi-feed LNB aligned with the three DIRECTV satellites at sea even during harsh marine environments or high-speed cruising
• Non-primary DIRECTV service receptions
• Capable of receiving DIRECTV local channels broadcast from the two DIRECTV Ku-band satellites located 110xW and 119xW as well as Dish Network and Bell TV services

Additional Features:

• Plug and play, DIRECTV capable - easy operation.
• Single cable from the antenna to ACU for simple installation.
• Built-in SWM (Single Wiring Multi-switch) and two 8-way splitters in the default package enable 16-receiver connections as standard.
• Expandable up to 32 receivers and beyond. Fully capable of supporting DVR receivers
• Advanced, superior low noise antenna performance
• DIRECTV, DISH Network & Bell TV legacy service capability
• Multi-band (Ka-Ku) & Multi-feed (3 feeds) in one dome
• Dynamic Beam Tilting (DBT) Technology
• ACU with WiFi connection with Aptus App for simple system upgrades
• WRS (Wide Range Search) algorithm
• Fast efficient search for satellite reception
• Single Wire Multi-switch allows connection of up to 16 receivers (32 receivers with the Expansion Kit)
• Automatic Skew Angle Control System
• Built-in GPS and GPS NMEA 0813 interface
• Simplified Antenna-to-ACU cabling
• Easy installation and operation
• *3 Year Warranty - 2 Year Labor

• Automatic satellite search and identification function

• 2-axis step motor for controlling the antenna pedestal

• 23.6 inch (60 cm) Reflector antenna for receiving Ku-Band (10.7 12.75GHz) satellite signal

• LHCP/RHCP or Horizontal/Vertical polarization

• Enabling powerful signal gain

• Dynamic Beam Tilting (DBT) by rotating sub-reflector with high speed BLDC motor

• Wide Range Search (WRS) algorithm

• Statistical search algorithm

• High speed identification employing DVB decoder

• QPSK demodulator lock for DSS signal

• Embedded GPS, which allows for the system to upload the GPS data automatically into the system

• Easy satellite information change and update via WiFi using the Aptus App

• Easy antenna status check and automatic diagnosis

• Easy antenna control using Aptus graphical control App

• Reliable power supply to the antenna and to the MIM module

• Embedded HD module and TriSat function

• Industry leading 3-year parts and workmanship guarantee with a
  2-year labor warranty for all antenna systems, ensuring peace of mind with
  your hardware investment

• Antenna & Radome 23.6" (60 cm) Reflector & North Americas LNB

• ACU (Antenna Control Unit) with WiFi connection for upgrades

• Built-in HD Module for Ku-Band HD (when available)

• Built-in GPS and NMEA 0183 GPS interface

• Built-in Pre-programmed Global satellite library

• Aptus App, downloadable

• Installation & Operation Manual

• Installation Template

• Quick Installation Guide

• Cable Kit:

  • 49ft (15 m) x 1EA Antenna-ACU RG6 Coaxial Cables

  • 10ft (3 m) x 1EA ACU-IRD RG6 Coaxial Cables

  • 33ft (10 m) x 1EA DC ACU Power Cable

  • 6ft (1.8 m) x 1EA PC Serial Cable

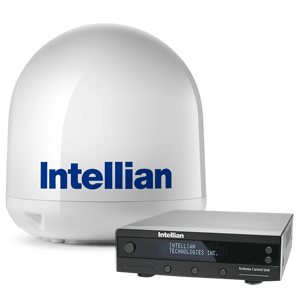

i4 US System w/17.7" Reflector & All Americas LNB

With its rugged, reliable and durable design, the Intellian i4 provides the most outstanding performance to stay locked in. It connects boaters to the premium satellite TV entertainment they want while vessels are cruising at high speed or in rough sea conditions. The i4’s stylish and polished dome design makes it perfect for boats over 50 feet.

With its patent pending innovations in Wide Range Search (WRS) and Dynamic Beam Tilting (DBT) technologies, the i4 can achieve the most precise tracking performance and highest signal reception without the need of a fragile or superfluous motion sensor. An embedded GPS system can speed up satellite search and acquisition time.

The revolutionary design feature of the i4 is that it has the intelligent built-in HD and TriSat modules in its control unit. This offers boaters High Definition satellite TV broadcasts from leading satellite TV service providers without any extra conversion tools and cable wiring. Using Dish Network or Bell TV in Canada, the standard i4 enables HD channel viewing, with DirecTV SD programing is available. For DirecTV HD consider the Intellian s6HD. Combined with the new built in WiFi enables simple one-touch upgrades using the Aptus App.

With the Intellian MIM Switch (M2-TD02) sold separately, boaters can enjoy flipping channels through automatic satellite switching just like a home system. See the installation guide of DISH Network MIM for further details. For easy and flexible installation and operation, the i4 supports standard dual and quad IRD connections with its single cable design between the antenna and the antenna control unit (ACU). This simple and powerful system is manufactured in compliance with the most rigorous quality verification of ISO 9001:2001.

Features:

Fully Automated System

• Automatic satellite search and identification function
• 2-axis step motor for controlling the antenna pedestal

High Quality Antenna

• 45 cm diameter of parabola-type antenna for receiving Ku-Band (10.7 12.75GHz) satellite signal
• LHCP/RHCP or Horizontal/Vertical polarization
• Enabling powerful signal gain

Superior Dynamic Tracking

• Dynamic Beam Tilting (DBT) by rotating sub-reflector with high speed BLDC motor

Fastest Search Algorithm

• Wide Range Search (WRS) algorithm
• Statistical search algorithm

DVB (Digital Video Broadcasting) Signal Identification

• High speed identification employing DVB decoder
• QPSK demodulator lock for DSS signal

Built-in GPS System

• Embedded GPS, which allows for the system to upload the GPS data automatically into the system

New Antenna Control Unit

• Easy satellite information change and update via WiFi using the Aptus App
• Easy antenna status check and automatic diagnosis
• Easy antenna control using Aptus graphical control App
• Reliable power supply to the antenna and to the MIM module
• Embedded HD module and TriSat function
• Industry leading 3-year parts and workmanship guarantee with a
  2-year labor warranty for all antenna systems, ensuring peace of mind with
  your hardware investment

All Satellite Systems include the following parts as standard:

• Antenna & Radome 17.7" (45 cm) Reflector & North Americas LNB
• ACU (Antenna Control Unit) with WiFi connection for upgrades
• Built-in HD Module for Ku-Band HD (when available)
• Built-in GPS and NMEA 0183 GPS interface
• Built-in Pre-programmed Global satellite library
• Aptus App, downloadable
• Installation & Operation Manual
• Installation Template
• Quick Installation Guide
• Cable Kit:
  • 49ft (15 m) x 1EA Antenna-ACU RG6 Coaxial Cables
  • 10ft (3 m) x 1EA ACU-IRD RG6 Coaxial Cables
  • 33ft (10 m) x 1EA DC ACU Power Cable
  • 6ft (1.8 m) x 1EA PC Serial Cable

• Automatic satellite search and identification function

• 2-axis step motor for controlling the antenna pedestal

• 23.6 inch (60 cm) Reflector antenna for receiving Ku-Band (10.7 12.75GHz) satellite signal

• LHCP/RHCP or Horizontal/Vertical polarization

• Enabling powerful signal gain

• Dynamic Beam Tilting (DBT) by rotating sub-reflector with high speed BLDC motor

• Wide Range Search (WRS) algorithm

• Statistical search algorithm

• High speed identification employing DVB decoder

• QPSK demodulator lock for DSS signal

• Embedded GPS, which allows for the system to upload the GPS data automatically into the system

• Easy satellite information change and update via WiFi using the Aptus App

• Easy antenna status check and automatic diagnosis

• Easy antenna control using Aptus graphical control App

• Reliable power supply to the antenna and to the MIM module

• Embedded HD module and TriSat function

• Industry leading 3-year parts and workmanship guarantee with a
  2-year labor warranty for all antenna systems, ensuring peace of mind with
  your hardware investment

• Antenna & Radome 23.6" (60 cm) Reflector & Linear LNB

• ACU (Antenna Control Unit) with WiFi connection for upgrades

• Built-in HD Module for Ku-Band HD (when available)

• Built-in GPS and NMEA 0183 GPS interface

• Built-in Pre-programmed Global satellite library

• Aptus App, downloadable

• Installation & Operation Manual

• Installation Template

• Quick Installation Guide

• Cable Kit:

  • 49ft (15 m) x 1EA Antenna-ACU RG6 Coaxial Cables

  • 10ft (3 m) x 1EA ACU-IRD RG6 Coaxial Cables

  • 33ft (10 m) x 1EA DC ACU Power Cable

  • 6ft (1.8 m) x 1EA PC Serial Cable

• Automatic satellite search and identification function

• 2-axis step motor for controlling the antenna pedestal

• 45 cm diameter of parabola-type antenna for receiving Ku-Band (10.7 12.75GHz) satellite signal

• LHCP/RHCP or Horizontal/Vertical polarization

• Enabling powerful signal gain

• Dynamic Beam Tilting (DBT) by rotating sub-reflector with high speed BLDC motor

• Wide Range Search (WRS) algorithm

• Statistical search algorithm

• High speed identification employing DVB decoder

• QPSK demodulator lock for DSS signal

• Embedded GPS, which allows for the system to upload the GPS data automatically into the system

• Easy satellite information change and update via WiFi using the Aptus App

• Easy antenna status check and automatic diagnosis

• Easy antenna control using Aptus graphical control App

• Reliable power supply to the antenna and to the MIM module

• Embedded HD module and TriSat function

• Industry leading 3-year parts and workmanship guarantee with a
  2-year labor warranty for all antenna systems, ensuring peace of mind with
  your hardware investment

• Antenna & Radome 17.7" (45 cm) Reflector & North Americas LNB

• ACU (Antenna Control Unit) with WiFi connection for upgrades

• Built-in HD Module for Ku-Band HD (when available)

• Built-in GPS and NMEA 0183 GPS interface

• Built-in Pre-programmed Global satellite library

• Aptus App, downloadable

• Installation & Operation Manual

• Installation Template

• Quick Installation Guide

• Cable Kit:

  • 49ft (15 m) x 1EA Antenna-ACU RG6 Coaxial Cables

  • 10ft (3 m) x 1EA ACU-IRD RG6 Coaxial Cables

  • 33ft (10 m) x 1EA DC ACU Power Cable

  • 6ft (1.8 m) x 1EA PC Serial Cable

i-Series DISH Network MIM Switch

Intellian technology strives to lead the satellite antenna systems in terms of innovation and the quality of our items and services. We always aim to take satellite antenna systems to the next level. Intellian DISH Network MIM utilizes a leading-edge technology which replaces the Dish Network DP-34 multi-switch. The user oriented design of the MIM offers Dish Network subscribers access to their favorite high-definition (HD) programming and switches automatically between Dish Network 110xW, 119xW, and 129xW satellites or alternatively between satellites 61.5xW,110xW, and 119xW. If you are in certain areas of the east coast or south Texas, you may not be able to view HD programming from the 129x satellite based on your geographical location. Therefore, instead of selecting the 129x satellite, you can select the 61.5x satellite which carries the same programs as the 129x satellite.

Intellian recommends using a Dish Network model ViP211 HDTV receiver for automatic satellite switching. The MIM module has four receiver connector ports. Intellian’s MIM allows you to select which receiver connected to the MIM will be the "Master" receiver. The "Master" receiver will control which satellite the antenna is focused on. You can simply choose your desired channels by using the receiver’s remote control through the Master receiver, and the Intellian i-series will automatically switch to the appropriate satellite. With Intellian’s MIM, you can enjoy watching Dish Network HD TV without any disruption.

In addition, the installation and configuration are very easy and simple even if more than 4 satellite receivers are connected with the MIM. Intellian MIM is designed to provide user-friendly ease of installation so that even novice can easily install and connect these according to our manual. As long as you install the Intellian MIM into the place which is easily accessible from your main TV viewing area, you will not meet any trouble to watch Dish Network HD TV. Enjoy your sailing with our cutting-edge MIM.

Features:

• MIM enables automatic switching between three Ku-band satellites & master/slave receiver selection
• DISh MIM is compatible with Bell TV for Canada as well as DISH Network
• Includes a 4-point multi-switch

Control Board i2

Intellian’s control board for the i2. The Intellian i2 is the world’s first high-performance, compact satellite TV system with an integrated HD module. This state-of-the-art functionality provides premium high-definition HD, when available, and standard SD programming broadcasts from satellite TV providers around the world.

Control Board s6HD

Intellian’s control board for the s6HD. The Intellian s6HD is a complete all-in-one satellite TV solution that enables boaters to enjoy high-definition TV channels just like at home. The antenna’s stylish polished radome design makes it a perfect fit for boats over 45 feet. See more for less, with the s6HD.

B3 Antenna Control Board for i3, i4, d4, i5 & i6

Intellian’s B3 Antenna Control Board for a range of Satellite TV Antennas. The complete range of Intellian marine satellite TV systems enables uninterrupted HD or SD TV viewing onboard. These dependable products have been developed for vessel owners who go to sea in all conditions, or for those who like to drop anchor in a quiet cove somewhere. Intellian manufactures antennas with fewer moving parts, making the products smaller, quieter, and easier to install and operate.

AZ Drive Motor for i3, i6P, i6PE, s6HD & i6W

Intellian’s AZ Drive Motor is specifically for the i3, i6P, i6PE, s6HD and i6W.

i5/i5P Empty Dome & Base Plate Assembly

Specifications:

• Radome Height: 62.7cm / 24.7"
• Radome Diameter: 61cm / 24"
• Reflector Diameter:53.5cm / 21"
• Weight: 17.3kg/38lbs

Sub-Reflector i2/i9

Sub-Reflector Assembly for Intellian i1, i2, i9P and i9W.

Sub-Reflector i3/i6

Sub-Reflector Assembly for Intellian i3, i6 and i6P.

Elevation Limit Switch for i6, s6HD & i9

Elevation Limit Switch Cable for Intellian i6/ i6P/i6PE/i6W/s6HD/i9P/i9W.

Skew Assembly

Intellian’s Skew Assembly for S6HD.

v60E 65cm Ku-band Maritime VSAT Antenna System - 6W Single Buc Single Cable - Lightweight

Reliable & Powerful 65cm Maritime System - Light. Affordable. Powerful.

Advanced Performance and Design

Intellian’s advanced RF design and technology delivers highly efficient performance, including enhanced tracking precision compared to other 65 cm class systems. The v60E has a compact and streamlined mechanical design to produce a light weight and robust antenna, maintaining high levels of reliability and performance that are compulsory in a Maritime environment.

Controlled Costs with Light and Compact Form-factor

With its light and compact form-factor, the cost of installation and logistics is reduced. The weight of the antenna system is only 42kg, allowing installation without a crane and this saves the total cost of installation.

Simplified installation & enhanced AptusNX

Combining Tx, Rx and DC power into one coaxial cable solution with an external dome-on connection enables faster and reduced costs of installation for the v60E. It also eliminates the need to remove the radome during installation. Users can commission the system using AptusNX by simply plugging a laptop into the ACU, without any need to download extra software. The AptusNX uses an installation wizard with a step-by-step commissioning guide to easily complete setup, and with enhanced diagnostic capabilities, the AptusNX can send an alert to the network operator when preventative maintenance is required.

Features:

• Single coaxial cable
• Gyro-free Operation
• Pain-free Installation
• Global Satellite Library
• AptusNX
• Auto Beam Switching (ABS)
• Simplified 6W Single BUC
• Open Platform compatibility

C700 Stand-Alone Iridium Certus Terminal for Iridium Next

Developed for Iridium’s global network and designed to provide the fastest L-band broadband service in the industry, the C700 will deliver up to 352kbps transmission and 704kbps reception speeds through the Iridium Certus platform. Its 12-element patch technology also ensures seamless connectivity, even in adverse weather or environments.

Intellian’s C700 terminal takes full advantage of the capabilities made possible by Iridium Certus. It is designed to meet the needs of tankers, container ships, workboats, cruise and ferry lines – even leisure craft – creating a truly agile and adaptable maritime satcom system.

Iridium Certus offers a unique opportunity to develop both terminals and applications with the advantage of a truly global network which supports engineering small form factor, cost-effective hardware to provide a superior choice for the maritime industry.

Features:

• Perfect VSAT companion
• Powerful 12 Element Patch Phased-Array Antenna
• HGA-2 class antenna ensuring uplink speed up to 352 kbps
• Enhanced performance in lower elevation which can guarantee reliable throughput in rough sea conditions
• Small and lightweight
• Easy installation and simple configuration
• Single coaxial cable antenna connection
• Cyber Security Enhanced – Built-in Firewall and user threat management
• Three high-quality voice lines with Soft-PABX function
• All-around voice, up to 16 IP phones and 2 analog phones
• WAN Port to connect with a 3G/LTE Modem
• 4-Port ethernet (LAN) PoE / Wi-Fi access point
• Open API for remote management
• Reliable solid-state technology with no moving parts
• Designed for a minimum operational lifetime of 10 years with no scheduled maintenance required
• 3-Year Global Warranty – Parts and Labor
• Iridium Type Approved

In the Box:

• ADU (Above Deck Unit)
• BDU (Below Deck Unit)
• 25M Antenna Cable
• Drilling Template
• 1M DC Power Cable
• Quick Installation Guide

C700 19" Rack Mount Iridium Certus Terminal for Iridium Next

Developed for Iridium’s global network and designed to provide the fastest L-band broadband service in the industry, the C700 will deliver up to 352kbps transmission and 704kbps reception speeds through the Iridium Certus platform. Its 12-element patch technology also ensures seamless connectivity, even in adverse weather or environments.

Intellian’s C700 terminal takes full advantage of the capabilities made possible by Iridium Certus. It is designed to meet the needs of tankers, container ships, workboats, cruise and ferry lines – even leisure craft – creating a truly agile and adaptable maritime satcom system.

Iridium Certus offers a unique opportunity to develop both terminals and applications with the advantage of a truly global network which supports engineering small form factor, cost-effective hardware to provide a superior choice for the maritime industry.

Features:

• Perfect VSAT companion
• Powerful 12 Element Patch Phased-Array Antenna
• HGA-2 class antenna ensuring uplink speed up to 352 kbps
• Enhanced performance in lower elevation which can guarantee reliable throughput in rough sea conditions
• Small and lightweight
• Easy installation and simple configuration
• Single coaxial cable antenna connection
• Cyber Security Enhanced – Built-in Firewall and user threat management
• Three high-quality voice lines with Soft-PABX function
• All-around voice, up to 16 IP phones and 2 analog phones
• WAN Port to connect with a 3G/LTE Modem
• 4-Port ethernet (LAN) PoE / Wi-Fi access point
• Open API for remote management
• Reliable solid-state technology with no moving parts
• Designed for a minimum operational lifetime of 10 years with no scheduled maintenance required
• 3-Year Global Warranty – Parts and Labor
• Iridium Type Approved

In the Box:

• ADU (Above Deck Unit)
• BDU (Below Deck Unit)
• 25M Antenna Cable
• Drilling Template
• 1M DC Power Cable
• Quick Installation Guide
• AC/DC Power Adaptor
• Rack Bracket

v45C 45cm Compact & Light Ku-Band VSAT Antenna - 6W

The v45C is a compact and lightweight 45cm and 23kg maritime Ku-Band system. The v45C VSAT system is designed to deliver enhanced connectivity and user experience to smaller boats and vessels, including fishing, leisure, commercial, and government. The antenna offers exceptional value and performance no matter the communication needs or space constraints onboard.

Compact & Light VSAT Terminal

45cm and 23kg maritime Ku-band system provide enhanced connectivity and user experience to smaller boats and vessels.

Quick & Easy Installation

Single coaxial cable is connected externally, so no requirement to access the inside of the radome.

Antenna Management Platform

Intellian’s integrated AptusNX platform provides a responsive web user interface to manage and control the antenna system.

Unparalleled User Experience

The advanced design ensures Optimal performance on both HTS and wide beam Ku-band satellites.

Optimized Performance

• The RF design is optimized to deliver best-in-class performance and efficiency.
• The advanced design ensures optimal performance on both HTS and wide beam Ku-band satellites.
• Customers have the flexibility of connecting their v45C antenna via their Ku-band service provider of choice.

Unrivaled Global Support

• Most cost-effective delivery of products and support services through Intellian’s global operation and logistic centers
• Industry-leading global support through our in-house engineers and an extensive network of dealers and service partners.

Specifications:

• Radome Dimension: 61x62.7 cm (24x24.6 inch)
• Reflector Diameter: 45cm (17.7inch)
• Antenna Weight: 23kg/ 50.7 lbs
• TX Frequency: 13.7514.5GHz Ku-band
• RX Frequency: 10.712.75GHz Ku-band
• TX Gain: 34.8 dBi @ 14.25 GHz (excl. radome)
• RX Gain: 33.2 dBi @ 11.7 GHz (excl.radome)
• G/T: >12.3 dB/K (min.)

SWM-30 Kit External Multi-Switch - Supports up to 26 Tuners

The latest and greatest external multi-switch from DIRECTV feeds up to 26 tuners in two banks of 13 for easy wiring. Supports 4K and the use of the international WorldDIRECT dish. Also included is a 29-volt power inserter that supports the SWM-8 or SWM-16 multi-switch remotely through a coax cable. It can operate from the power passing port of a splitter, or on the SWM-16, which can be run from the separate PWR port.

Features:

• Supports two banks of 13 tuners (no MoCA/MRV crossover)
• Replacement for SWM-8, SWM-16, and SWM-32 multi-switches
• Compatible with previous generation Slimline dishes
• Compatible with Genie and Genie 2
• For use with WorldDIRECT dish, use WD-DIPLEXER-09 diplexer sold separately
• For use with 4K installations, use SL5RB or SL3RBAH LNB (6 coax cables to the SWM)
• Output level -25dBm
• Powers any coax-powered device up to 13V, 500mA
• Requires SWM-capable receivers (H21 or higher, D12, HR20 or higher, HS17)
• Can be used for the SWM-8 and SWM-16
• Outputs: 1 IRD & 1 SWM
• SWM Port Output: 29V

i3 US System US & Canada TV Antenna System & SWM-30 Kit

i3 US System US & Canada TB Antenna System

The Intellian i3 provides superior tracking performance compared to antenna systems of a similar size. With its stylish dome, the i3 is ideal for boats over 8m (25ft). The i3’s high signal gain makes it the best performing 37cm (15in) antenna system available today.

Features:

• Built-in Wi-Fi enables one touch diagnostic and updates from your PC or iOS device
• Auto satellite switching function from your remote control
• Compatible with leading satellite TV service providers around the world
• 60° per second turn rate ensures signal tracking at high speeds and in rough seas
• Travel further North or South with an extended elevation range of 10° to 80°
• Built-in GPS enables faster signal acquisition
• Simplicity of design, no external compass or rate sensors required
• Built-in HD module for Ku-band HD TV reception
• Receiver Required - Sold Separately

SWM-30 Kit

The latest and greatest external multi-switch from DIRECTV feeds up to 26 tuners in two banks of 13 for easy wiring. Supports 4K and the use of the international WorldDIRECT dish. Also included is a 29-volt power inserter that supports the SWM-8 or SWM-16 multi-switch remotely through a coax cable. It can operate from the power passing port of a splitter, or on the SWM-16, which can be run from the separate PWR port.

Features:

• Supports two banks of 13 tuners (no MoCA/MRV crossover)
• Replacement for SWM-8, SWM-16, and SWM-32 multi-switches
• Compatible with previous generation Slimline dishes
• Compatible with Genie and Genie 2
• For use with WorldDIRECT dish, use WD-DIPLEXER-09 diplexer sold separately
• For use with 4K installations, use SL5RB or SL3RBAH LNB (6 coax cables to the SWM)
• Output level -25dBm
• Powers any coax-powered device up to 13V, 500mA
• Requires SWM-capable receivers (H21 or higher, D12, HR20 or higher, HS17)
• Can be used for the SWM-8 and SWM-16
• Outputs: 1 IRD & 1 SWM
• SWM Port Output: 29V

i4 All-Americas TV Antenna System & SWM-30 Kit

i4 All-Americas TV Antenna System

With its rugged, reliable, and durable design, the Intellian i4 provides the most outstanding performance to stay locked in. It connects boaters to the premium satellite TV entertainment they want while vessels are cruising at high speed or in rough sea conditions. The i4’s stylish and polished dome design makes it perfect for boats over 50 feet.

With innovations in Wide Range Search (WRS) and Dynamic Beam Tilting (DBT) technologies, the i4 can achieve the most precise tracking performance and highest signal reception without the need for a fragile or superfluous motion sensor. An embedded GPS system can speed up satellite search and acquisition time.

The revolutionary design feature of the i4 is that it has intelligent built-in HD and TriSat modules in its control unit. This offers boaters High Definition satellite TV broadcasts from leading satellite TV service providers without any extra conversion tools and cable wiring. Using Dish Network or Bell TV in Canada, the standard i4 enables HD channel viewing, with DirecTV SD programming is available. For DirecTV HD consider the Intellian s6HD. Combined with the new built-in WiFi enables simple one-touch upgrades using the Aptus App.

With the Intellian MIM Switch (M2-TD02) sold separately, boaters can enjoy flipping channels through automatic satellite switching just like a home system. See the installation guide of DISH Network MIM for further details. For easy and flexible installation and operation, the i4 supports standard dual and quad IRD connections with its single cable design between the antenna and the antenna control unit (ACU). This simple and powerful system is manufactured in compliance with the most rigorous quality verification of ISO 9001:2001.

Features:

Fully Automated System

• Automatic satellite search and identification function
• 2-axis step motor for controlling the antenna pedestal

High-Quality Antenna

• 45 cm diameter of parabola-type antenna for receiving Ku-Band (10.7 12.75GHz) satellite signal
• LHCP/RHCP or Horizontal/Vertical polarization
• Enabling powerful signal gain

Superior Dynamic Tracking

• Dynamic Beam Tilting (DBT) by rotating sub-reflector with high-speed BLDC motor

Fastest Search Algorithm

• Wide Range Search (WRS) algorithm
• Statistical search algorithm

DVB (Digital Video Broadcasting) Signal Identification

• High-speed identification employing DVB decoder
• QPSK demodulator lock for DSS signal

Built-in GPS System

• Embedded GPS, which allows for the system to upload the GPS data automatically into the system

SWM-30 Kit

The latest and greatest external multi-switch from DIRECTV feeds up to 26 tuners in two banks of 13 for easy wiring. Supports 4K and the use of the international WorldDIRECT dish. Also included is a 29-volt power inserter that supports the SWM-8 or SWM-16 multi-switch remotely through a coax cable. It can operate from the power passing port of a splitter, or on the SWM-16, which can be run from the separate PWR port.

Features:

• Supports two banks of 13 tuners (no MoCA/MRV crossover)
• Replacement for SWM-8, SWM-16, and SWM-32 multi-switches
• Compatible with previous generation Slimline dishes
• Compatible with Genie and Genie 2
• For use with WorldDIRECT dish, use WD-DIPLEXER-09 diplexer sold separately
• For use with 4K installations, use SL5RB or SL3RBAH LNB (6 coax cables to the SWM)
• Output level -25dBm
• Powers any coax-powered device up to 13V, 500mA
• Requires SWM-capable receivers (H21 or higher, D12, HR20 or higher, HS17)
• Can be used for the SWM-8 and SWM-16
• Outputs: 1 IRD & 1 SWM
• SWM Port Output: 29V

i5 All-Americas TV Antenna System & SWM-30 Kit

i5 All-Americas TV Antenna System

The i5 is a significant addition to Intellian’s TVRO product lineup and has also created another size category for marine satellite TV systems. The unique form factor is directly addressing the needs of offshore cruising vessels ranging from 40-60’ in length.

The radome diameter of the i5 is 61cm (24") and it delivers extended coverage with a compact size. Intellian’s signature iQ2 technology delivers quicker and quieter signal tracking and simple installation for the ultimate customer experience. The system’s Wi-Fi enabled antenna control unit (ACU), provides the option to manage the system wirelessly via PC or Mobile Device, using Intellian’s graphically intuitive control application, Aptus.

Features:

Just the Right Fit

The i5 is the world’s first 20" satellite TV antenna purpose-built for offshore cruising vessels in the 40-60’ range. Its performance enables reception of TV service throughout the Bahamas, Caribbean, and Mexico, while its size is better suited for vessels under 60’ in length.

Simple & Easy Installation

With a single cable to connect the antenna and the ACU, the i5 system is quick and easy to install. Our intuitive ACU features a front panel display with functional keys and requires minimal setup so you can begin to enjoy TV programs in no time.

Quicker & Quieter

Intellian’s patented iQ2 technology delivers the best user experience available on the market today. An advanced signal searching algorithm acquires the satellite 4-5 times faster than conventional methods. Intelligent, real-time beam analysis holds the signal and reduces overall motor movement by up to 80%, eliminating annoying background noise while at anchor or in the slip.

Built-in GPS

The i5 includes a built-in GPS, which facilitates an easier installation by eliminating the need to integrate with the vessel’s system. Additionally, the GPS enables faster signal acquisition and improves overall tracking performance.

Standard All Americas LNB

The i5 is built to cruise offshore throughout the Americas. For this reason, it comes standard with Intellian’s own All America’s LNB, meaning users will not have to swap LNBs when sailing between regions.

Wireless Control via Aptus

Built-in Wi-Fi enables the ACU to be wirelessly managed and controlled via Aptus PC or Mobile, Intellian’s graphical antenna control software. Aptus user-friendly displays vital performance metrics in a graphical format that simplifies operation. It even includes an auto diagnostic function designed to help solve problems quickly should they arise. The Aptus Mobile application is available in the Apple Store and through Google Play.

Instant Updates

Occasionally satellite TV service providers make unannounced changes to their network that cause outages for marine users who do not receive regularly scheduled updates via their at-home dish. Aptus Mobile automatically checks for these updates, enabling users to stay current with any changes through a simple mobile app process.

Tune in to your favorite HDTV channels

Intellian’s i5 receives HD channels from any Ku- band TV service. Enjoy HD programming whether cruising in the US, Mexico, or the Caribbean.

SWM-30 Kit

The latest and greatest external multi-switch from DIRECTV feeds up to 26 tuners in two banks of 13 for easy wiring. Supports 4K and the use of the international WorldDIRECT dish. Also included is a 29-volt power inserter that supports the SWM-8 or SWM-16 multi-switch remotely through a coax cable. It can operate from the power passing port of a splitter, or on the SWM-16, which can be run from the separate PWR port.

Features:

• Supports two banks of 13 tuners (no MoCA/MRV crossover)
• Replacement for SWM-8, SWM-16, and SWM-32 multi-switches
• Compatible with previous generation Slimline dishes
• Compatible with Genie and Genie 2
• For use with WorldDIRECT dish, use WD-DIPLEXER-09 diplexer sold separately
• For use with 4K installations, use SL5RB or SL3RBAH LNB (6 coax cables to the SWM)
• Output level -25dBm
• Powers any coax-powered device up to 13V, 500mA
• Requires SWM-capable receivers (H21 or higher, D12, HR20 or higher, HS17)
• Can be used for the SWM-8 and SWM-16
• Outputs: 1 IRD & 1 SWM
• SWM Port Output: 29V

i6 All-Americas TV Antenna System & SWM-30 Kit

i6 All-Americas TV Antenna System

The Intellian i6 provides superior tracking performance and efficiency compared to antenna systems of similar size. With its stylish dome, the i6 is ideal for boats over 65 feet. The i6 brings boaters the excitement and variety of satellite TV programs while the vessels are traveling around coastal or blue water regions, the larger reflector size of the Intellian i6 increases the range that the unit will operate.

You will never have to compromise on reception or quality. The i6 offers the highest signal strength available along with Intellian patented innovations, Wide Range Search (WRS), and Dynamic Beam Tilting (DBT) technologies. Therefore, the i6 can always offer the most precision tracking capabilities and superior satellite signal reception while the vessel is cruising at high speed or in rough sea conditions.

The most innovative design of i6 is the integrated smart HD and TriSat modules in the antenna control unit (ACU) which allows boaters to access their favorite HDTV channels from leading satellite TV service providers freely just like they are used to do at home. Combined with the built-in WiFi enables simple one-touch upgrades using the Aptus App.

The i6 brings you trouble-free installation and operation with its single cable design between the antenna and the control unit. With the Intellian MIM Switch (M2-TD02) sold separately, boaters can enjoy changing Dish Network HD channels with automatic satellite switching just like a home system. See the installation guide of DISH Network MIM for further details. Plus, the Intellian i6 has a built-in GPS system to enhance satellite acquisition time and accuracy. For DirecTV users the Intellian i6 offers the full range of SD channels, upgrade to the Intellian s6HD for HD programming from DirecTV.

Features:

Fully Automated System

• Automatic satellite search and identification function
• 2-axis step motor for controlling the antenna pedestal

High-Quality Antenna

• 23.6 inch (60 cm) Reflector antenna for receiving Ku-Band (10.7 12.75GHz) satellite signal
• LHCP/RHCP or Horizontal/Vertical polarization
• Enabling powerful signal gain

Superior Dynamic Tracking

• Dynamic Beam Tilting (DBT) by rotating sub-reflector with high-speed BLDC motor

Fastest Search Algorithm

• Wide Range Search (WRS) algorithm
• Statistical search algorithm

DVB (Digital Video Broadcasting) Signal Identification

• High-speed identification employing DVB decoder
• QPSK demodulator lock for DSS signal

Built-in GPS System

• Embedded GPS, which allows for the system to upload the GPS data automatically into the system

SWM-30 Kit

The latest and greatest external multi-switch from DIRECTV feeds up to 26 tuners in two banks of 13 for easy wiring. Supports 4K and the use of the international WorldDIRECT dish. Also included is a 29-volt power inserter that supports the SWM-8 or SWM-16 multi-switch remotely through a coax cable. It can operate from the power passing port of a splitter, or on the SWM-16, which can be run from the separate PWR port.

Features:

• Supports two banks of 13 tuners (no MoCA/MRV crossover)
• Replacement for SWM-8, SWM-16, and SWM-32 multi-switches
• Compatible with previous generation Slimline dishes
• Compatible with Genie and Genie 2
• For use with WorldDIRECT dish, use WD-DIPLEXER-09 diplexer sold separately
• For use with 4K installations, use SL5RB or SL3RBAH LNB (6 coax cables to the SWM)
• Output level -25dBm
• Powers any coax-powered device up to 13V, 500mA
• Requires SWM-capable receivers (H21 or higher, D12, HR20 or higher, HS17)
• Can be used for the SWM-8 and SWM-16
• Outputs: 1 IRD & 1 SWM
• SWM Port Output: 29V

MIM-2 Interface for Dish Wally Receivers

This multiswitch module for Dish Wally receivers enables automatic satellite switching and is compatible with all new t-Series, s-Series, i-Series, and t-Series satellite TV systems when used with Dish Network (USA) Wally receivers.

Features:

• White-colored unit with four receiver connector ports
• Installation and configuration are very easy and simple
• Can be daisy-chained to support both new and legacy receivers
• Intellian’s MIM-2 allows you to select which receiver connected to the MIM will be the "master" receiver
• The "master" receiver will control which satellite the antenna is focused on
• Simply choose your desired channels by using the receiver’s remote control through the master receiver
• *Dedicated to the DISH Wally receiver and is not backwards compatible with the DISH VIP211 and VIP711

S6HD LNB & Feed Horn Assembly

The s6HD LNB and Feed Horn Assembly (SlimLine -5) is for use with Intellian s6HD only. Includes triple LNB and matched feedhorn assembly for the reception of Ku- and Ka-band signals for DirecTV.

Technical Specifications:

• 2.2 lbs
• 10.2" x 6.7" x 4.7"

In the Box:

• Triple LNB
• Feed horn assembly

Maritime Terminal for Inmarsat Fleet One Service

Intellian Fleet One is the perfect terminal for Inmarsat’s Fleet One service which enables simultaneous voice and data connectivity up to 150 Kbps. Intellian Fleet One ensures resilient and reliable connectivity at sea.

The Intellian Fleet One is simple and easy to install and use. The lightweight antenna can be carried onboard easily and only a single RF cable ensures a reliable connection.

Features:

• Simultaneous voice and data
• Built-in firewall for data security
• 505 emergency calls which in an emergency directs a call straight through to an MRCC
• Maritime safety terminal support
• Built-in aptusLX intuitive management tool
• 2 LAN ports with PoE (power over ethernet)

Technical Specifications:

• ADU (Above Deck Unit) Dimensions - 291.1 x 294.5 mm / 11.5" x 11.6"
• ADU (Above Deck Unit) Weight - 4.9 kg / 10.8 lbs
• BDU (Below Deck Unit) Dimensions - 280 x 190 x 41 mm / 11.0″ x 7.5″x 1.45″
• BDU (Below Deck Unit) Weight - 1.2 kg / 2.6 lbs
• DC Input - 10.8-30 VDC
• Power (Max) - 120w
• Tx Frequency - 1626.5 MHz - 1675.0 MHz
• Rx Frequency - 1518.0 MHz 1559.0 MHz
• WiFi - 802.11 b/g

In the Box:

• ADU (Above Deck Unit)
• BDU (Below Deck Unit)
• Coaxial Cable
• Quick Installation Guide
• Installation Template
• DC Power Cable
• Ethernet Cable

i2 US System with DISH/Bell MIM-2 (with 3M RG6 Cable) & 15M RG6 Cable

Compact and lightweight, the Intellian i2 delivers exceptional TV reception. Equipped with Intellian’s iQ2technologies, the i2 delivers stable, quiet, dependable performance and superior value in the smallest size antenna available.

High Performance
The Intellian i2 is the world’s first high-performance, compact satellite TV system with an integrated HD module. This state-of-the-art functionality provides premium high-definition HD, when available, and standard SD programming broadcasts from satellite TV providers around the world.

Constant & Seamless Entertainment
With innovative, patented iQ2 technologies, the i2 always maintains the highest signal strength available to ensure crystal-clear TV reception. Intellian’s super-efficient 33cm (13 in) diameter antenna provides constant, seamless reception while the vessel is moored, at anchor, or cruising offshore. Connecting a GPS to the i2 allows it to lock onto a signal even faster, while boats with conventional antennas are left watching "SEARCHING FOR SATELLITE" on their screen.

Automatic Satellite Switching
DISH Network (US) and Bell TV (Canada) users will benefit from using an Intellian MIM (Multi-Satellite Interface Module). The Intellian MIM (M2-TD02) is sold separately and is required to facilitate automatic switching between satellites for these services, allowing boaters to enjoy changing channels with automatic satellite switching just like a home system.

i2 Features:

Fully Automated System:

• Automatic Satellite Search and Identification Function
• 2-axis Stabilization provides high-speed tracking

High Performance Antenna:

• 33cm (13in) diameter, parabolic antenna for receiving Ku-Band satellite signals
• Circular or linear polarization depending on region and LNB selected
• Built-in HD module for Ku-band HD TV reception

iQ2 Quick & Quiet Technology:

• iQ2 Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort

Antenna Control Unit:

• Intuitive controls and digital satellite information displayed on the ACU
• Automated updates and diagnostics via Aptus
• Simple antenna status quick reference

Multiple Receiver Capability:

• Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
• Using the MIM, a master receiver can be selected to control the target satellite
• In North America, when using Dish Network or Bell TV, a MIM (M2-TD02)
  is required,
  enabling automatic satellite switching from your remote control just like at home

Compact Size:

• 37cm (14.6 inch) antenna radome diameter
• A very light antenna weighs less than 4.5 kg (10 pounds)

3-Year Global Warranty:

• Industry-leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment

Additional Features:

• Smaller size with better performance Auto satellite switching function for three satellites
• Compatible with leading satellite TV service providers around the world on rough seas
• 60° per second turn rate ensures signal tracking at high speeds and in rough seas
• Travel further North or South with an extended elevation range of 10° to 80°
• The simplicity of design, no fragile compass, and no rate sensors
• Built-in HD module for Ku-band
• 3-Year global warranty
• Receiver Required - Sold Separately

i2 US System with DISH/Bell MIM-2 (with 3M RG6 Cable) 15M RG6 Cable & DISH HD Wally Receiver

Compact and lightweight, the Intellian i2 delivers exceptional TV reception. Equipped with Intellian’s iQ2technologies, the i2 delivers stable, quiet, dependable performance and superior value in the smallest size antenna available.

High Performance
The Intellian i2 is the world’s first high-performance, compact satellite TV system with an integrated HD module. This state-of-the-art functionality provides premium high-definition HD, when available, and standard SD programming broadcasts from satellite TV providers around the world.

Constant & Seamless Entertainment
With innovative, patented iQ2 technologies, the i2 always maintains the highest signal strength available to ensure crystal-clear TV reception. Intellian’s super-efficient 33cm (13 in) diameter antenna provides constant, seamless reception while the vessel is moored, at anchor, or cruising offshore. Connecting a GPS to the i2 allows it to lock onto a signal even faster, while boats with conventional antennas are left watching "SEARCHING FOR SATELLITE" on their screen.

Automatic Satellite Switching
DISH Network (US) and Bell TV (Canada) users will benefit from using an Intellian MIM (Multi-Satellite Interface Module). The Intellian MIM (M2-TD02) is sold separately and is required to facilitate automatic switching between satellites for these services, allowing boaters to enjoy changing channels with automatic satellite switching just like a home system.

i2 Features:

Fully Automated System:

• Automatic Satellite Search and Identification Function
• 2-axis Stabilization provides high-speed tracking

High-Performance Antenna:

• 33cm (13in) diameter, parabolic antenna for receiving Ku-Band satellite signals
• Circular or linear polarization depending on region and LNB selected
• Built-in HD module for Ku-band HD TV reception

iQ2 Quick & Quiet Technology:

• iQ2 Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort

Antenna Control Unit:

• Intuitive controls and digital satellite information displayed on the ACU
• Automated updates and diagnostics via Aptus
• Simple antenna status quick reference

Multiple Receiver Capability:

• Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
• Using the MIM, a master receiver can be selected to control the target satellite
• In North America, when using Dish Network or Bell TV, a MIM (M2-TD02)
  is required,
  enabling automatic satellite switching from your remote control just like at home

Compact Size:

• 37cm (14.6 inch) antenna radome diameter
• A very light antenna weighs less than 4.5 kg (10 pounds)

3-Year Global Warranty:

• Industry-leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment

Additional Features:

• Smaller size with better performance Auto satellite switching function for three satellites
• Compatible with leading satellite TV service providers around the world on rough seas
• 60° per second turn rate ensures signal tracking at high speeds and in rough seas
• Travel further North or South with an extended elevation range of 10° to 80°
• The simplicity of design, no fragile compass, and no rate sensors
• Built-in HD module for Ku-band
• 3-Year global warranty
• Receiver Required - Sold Separately

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

i3 US System with DISH/Bell MIM-2 (with 3M RG6 Cable) & 15M RG6 Cable

The Intellian i3 provides superior tracking performance compared to antenna systems of a similar size. With its stylish dome, the i3 is ideal for boats over 8m (25ft). The i3’s high signal gain makes it the best performing 37cm (15in) antenna system available today.

Features:

• Built-in Wi-Fi enables one touch diagnostic and updates from your PC or iOS device
• Auto satellite switching function from your remote control
• Compatible with leading satellite TV service providers around the world
• 60° per second turn rate ensures signal tracking at high speeds and in rough seas
• Travel further North or South with an extended elevation range of 10° to 80°
• Built-in GPS enables faster signal acquisition
• Simplicity of design, no external compass or rate sensors required
• Built-in HD module for Ku-band HD TV reception
• Receiver Required - Sold Separately

High Performance

You will never have to compromise on reception or quality. The i3 offers the highest signal strength available along with Intellian’s patented iQ² Technology. The slightly larger reflector and radome size over the i2 improve range and allow for a more ruggedized design, making the i3 ideal for vessels traveling at higher speeds or further into offshore waters.

Constant & Seamless Entertainment

With innovative technologies, the i3 always maintains the highest signal strength available and ensures crystal-clear TV reception.

Intellian’s super-efficient 37cm (15 inch) diameter antenna provides constant, seamless reception while the vessel is moored, at anchor, motoring along the coast or cruising offshore. The i3 2-axis antenna features a built-in GPS which can accelerate the satellite signal acquisition time while boats with conventional antennas are left watching “SEARCHING FOR SATELLITE” on their screen.

Automatic Satellite Switching

DISH (US) and Bell TV (Canada) users will benefit from using an Intellian MIM (Multi-Satellite Interface Module) . The Intellian MIM is required to facilitate automatic switching between satellites for these services, allowing boaters to enjoy changing channels with automatic satellite switching just like a home system. See the Intellian MIM product guide for further details.

i3 US System with DISH/Bell MIM-2 (with 3M RG6 Cable) 15M RG6 Cable & DISH HD Wally Receiver

The Intellian i3 provides superior tracking performance compared to antenna systems of a similar size. With its stylish dome, the i3 is ideal for boats over 8m (25ft). The i3’s high signal gain makes it the best performing 37cm (15in) antenna system available today.

Features:

• Built-in Wi-Fi enables one touch diagnostic and updates from your PC or iOS device
• Auto satellite switching function from your remote control
• Compatible with leading satellite TV service providers around the world
• 60° per second turn rate ensures signal tracking at high speeds and in rough seas
• Travel further North or South with an extended elevation range of 10° to 80°
• Built-in GPS enables faster signal acquisition
• Simplicity of design, no external compass or rate sensors required
• Built-in HD module for Ku-band HD TV reception
• Receiver Required - Sold Separately

High Performance

You will never have to compromise on reception or quality. The i3 offers the highest signal strength available along with Intellian’s patented iQ² Technology. The slightly larger reflector and radome size over the i2 improve range and allow for a more ruggedized design, making the i3 ideal for vessels traveling at higher speeds or further into offshore waters.

Constant & Seamless Entertainment

With innovative technologies, the i3 always maintains the highest signal strength available and ensures crystal-clear TV reception.

Intellian’s super-efficient 37cm (15 inch) diameter antenna provides constant, seamless reception while the vessel is moored, at anchor, motoring along the coast or cruising offshore. The i3 2-axis antenna features a built-in GPS which can accelerate the satellite signal acquisition time while boats with conventional antennas are left watching “SEARCHING FOR SATELLITE” on their screen.

Automatic Satellite Switching

DISH (US) and Bell TV (Canada) users will benefit from using an Intellian MIM (Multi-Satellite Interface Module) . The Intellian MIM is required to facilitate automatic switching between satellites for these services, allowing boaters to enjoy changing channels with automatic satellite switching just like a home system. See the Intellian MIM product guide for further details.

All-Americas i-Series (i3-i6) TVRO Spares Kit

lntellian supplies 3 types of TVRO spare parts kits with replacement LNBs, ACUs, and control board components to ensure that technicians have what they need on hand. All kits come neatly packaged in a custom rugged case. Each part is individually wrapped and labeled with a part number and description.

**Does not support i2 Intellian antennas**

What’s In The Box?

• All-Americas LNB (Part # S2-0820)
• DC Powered ACU (Part # BP-T901P)
• Antenna Control Board (Part # S3-0503)

WorldView i-Series (i6W-i9W) TVRO Spares Kit

lntellian supplies 3 types of TVRO spare parts kits with replacement LNBs, ACUs, and control board components to ensure that technicians have what they need on hand. All kits come neatly packaged in a custom rugged case. Each part is individually wrapped and labeled with a part number and description.

In the Box:

• WorldView LNB (Part # S2-0817_B)
• DC Powered ACU (Part # BP-T901P)
• Antenna Control Board (Part # S3-0506_A)

S6HD TVRO Spares Kit

lntellian supplies 3 types of TVRO spare parts kits with replacement LNBs, ACUs, and control board components to ensure that technicians have what they need on hand. All kits come neatly packaged in a custom rugged case. Each part is individually wrapped and labeled with a part number and description.

In the Box:

• S6HD LNB & Feed Horn Assembly (Part # S2-6817)
• DC Powered ACU (Part # BP-T901P)
• Antenna Control Board (Part # S3-0506_A)

FB250 Inmarsat Fleet Broadband Maritime Terminal with 19" Rack Mount BDU

Intellian FB250 is a maritime terminal designed for Inmarsat’s L-band network ELERA, which enables simultaneous voice and data connectivity up to 284 Kbps. It has been engineered as the perfect companion to the Intellian GX100NX and GX60NX Global Xpress terminals, which together deliver Fleet Xpress.

Simultaneous voice and data - Various applications such as e-mails, SMS, and calls are available by supporting simultaneous voice and data. FB250 also supports 505 emergency calls.

Easy to install and simple configuration - Simple and quick installation via AptusLX, an intuitive web-based platform to manage and control the antenna system. The FB250 comes with a three-year global warranty.

Complete FX solution - Fleet Xpress combines the high data speeds of Global Xpress (Ka-band) with the proven reliability of FleetBroadband (L-band network ELERA) to offer unrivaled speed, continuous connectivity, and guaranteed performance for true global mobility. The FB250 combined with Intellian’s GX100NX or GX60NX is the ideal FX solution.

All-in-one solution - The FB250 offers a variety of features such as analog voice lines, a built-in firewall for data security, four LAN ports with PoE, a 3G/LTE WAN port to connect an external cellular modem, and soft PABX. These technical capabilities and GMDSS readiness of the FB250, make it ideal for vessel operations, safety, and crew welfare services.

Features:

• Small and lightweight terminal
• Built-in Inmarsat BRM module
• Efficient two-axis helix terminal
• Unlimited azimuth range
• Single cable installation
• Ethernet over coax

Technical Specifications:

• DC Input - 10.8 - 30 VDC
• Power (Max) - 120W
• RX Frequency - 1518.0 MHz - 1559.0 MHz
• TX Frequency - 1626.5 MHz - 1675.0 MHz
• Antenna Connectors - TNC female (ADU) – TNC female (BDU)
• Wi-Fi - 802.11 b/g
• ADU Dimensions - 291.1 x 294.5 mm / 11.5" x 11.6"
• ADU Weight - 4.9 kg / 10.8 lb
• BDU Dimensions - 280 x 190 x 41 mm / 11.0″ x 7.5″x 1.45″ 3
• BDU Weight - 1.2 kg / 2.6 lb

FB250 Inmarsat Fleet Broadband Maritime Terminal with Stand-Alone BDU

Intellian FB250 is a maritime terminal designed for Inmarsat’s L-band network ELERA, which enables simultaneous voice and data connectivity up to 284 Kbps. It has been engineered as the perfect companion to the Intellian GX100NX and GX60NX Global Xpress terminals, which together deliver Fleet Xpress.

Simultaneous voice and data - Various applications such as e-mails, SMS, and calls are available by supporting simultaneous voice and data. FB250 also supports 505 emergency calls.

Easy to install and simple configuration - Simple and quick installation via AptusLX, an intuitive web-based platform to manage and control the antenna system. The FB250 comes with a three-year global warranty.

Complete FX solution - Fleet Xpress combines the high data speeds of Global Xpress (Ka-band) with the proven reliability of FleetBroadband (L-band network ELERA) to offer unrivaled speed, continuous connectivity, and guaranteed performance for true global mobility. The FB250 combined with Intellian’s GX100NX or GX60NX is the ideal FX solution.

All-in-one solution - The FB250 offers a variety of features such as analog voice lines, a built-in firewall for data security, four LAN ports with PoE, a 3G/LTE WAN port to connect an external cellular modem, and soft PABX. These technical capabilities and GMDSS readiness of the FB250 make it ideal for vessel operations, safety, and crew welfare services.

Features:

• Small and lightweight terminal
• Built-in Inmarsat BRM module
• Efficient two-axis helix terminal
• Unlimited azimuth range
• Single cable installation
• Ethernet over coax

Technical Specifications:

• DC Input - 10.8 - 30 VDC
• Power (Max) - 120W
• RX Frequency - 1518.0 MHz - 1559.0 MHz
• TX Frequency - 1626.5 MHz - 1675.0 MHz
• Antenna Connectors - TNC female (ADU) – TNC female (BDU)
• Wi-Fi - 802.11 b/g
• ADU Dimensions - 291.1 x 294.5 mm / 11.5" x 11.6"
• ADU Weight - 4.9 kg / 10.8 lb
• BDU Dimensions - 280 x 190 x 41 mm / 11.0″ x 7.5″x 1.45″ 3
• BDU Weight - 1.2 kg / 2.6 lb

FB500 Inmarsat Fleet Broadband Maritime Terminal with 19" Rack Mount BDU

Intellian FB500 is the newest terminal for Inmarsat’s FleetBroadband service, with simultaneous voice and data connectivity up to 432 Kbps. The FB500 has been designed to work equally well as part of an FX installation or as a fully featured stand-alone terminal. Intellian FB500 ensures resilient and reliable connectivity at sea.

The lower total cost of ownership -The FB500 is a highly reliable terminal that is easy to install and has a wide range of features and functionality that reduces the amount of additional equipment required. It minimizes air time costs through automatic WAN switching and preventing out-of-policy usage. The terminal comes with market-leading 3-year parts and a 2-year labor warranty.

A perfect companion - The FB500 can be paired with one of Intellian’s Global Xpress (GX) terminals to provide an outstanding Fleet Xpress (FX) solution. It is easily integrated using Fleet Edge and comes with a comprehensive, documented API library.

All-in-one stand-alone solution -The FB500 offers unparalleled features and functionality that includes: automatic switching between WAN and Inmarsat’s satellite connection, Wi-Fi antenna, built-in soft PABX, and a firewall. These features, along with being GMDSS-ready, make it ideal for vessel operations, safety, and crew welfare.

AptusLX is intuitive and powerful - Simple and quick installation of the FB500 via AptusLX, an intuitive yet powerful terminal management software. With secure login functionality both onboard and for remote support teams, and a customizable dashboard with multi-language support.

Features:

• Connects to Inmarsat’s ELERA network using their latest L-band modem
• Efficient 3-axis directional 19-patch phased array antenna
• Unlimited azimuth rotation
• Single cable connecting ADU & BDU

Technical Specifications:

• DC Input - 10.8 - 30 VDC
• Power (Max) - 120W
• RX Frequency - 1518.0 MHz - 1559.0 MHz
• TX Frequency - 1626.5 MHz - 1675.0 MHz
• Antenna Connectors - N female (ADU) – TNC female (BDU)
• Wi-Fi - 802.11 b/g
• ADU Dimensions - 733 x 797 mm / 28.8” x 31.4”
• ADU Weight - 29.5 kg / 65 lb
• BDU Dimensions - 315 x 190 x 42 mm / 12.4” x 7.5” x 1.7”
• BDU Weight - 1.5 kg / 3.3 lb

FB500 Inmarsat Fleet Broadband Maritime Terminal with Stand-Alone BDU

Intellian FB500 is the newest terminal for Inmarsat’s FleetBroadband service, with simultaneous voice and data connectivity up to 432 Kbps. The FB500 has been designed to work equally well as part of an FX installation or as a fully featured stand-alone terminal. Intellian FB500 ensures resilient and reliable connectivity at sea.

The lower total cost of ownership -The FB500 is a highly reliable terminal that is easy to install and has a wide range of features and functionality that reduces the amount of additional equipment required. It minimizes air time costs through automatic WAN switching and preventing out-of-policy usage. The terminal comes with market-leading 3-year parts and a 2-year labor warranty.

A perfect companion - The FB500 can be paired with one of Intellian’s Global Xpress (GX) terminals to provide an outstanding Fleet Xpress (FX) solution. It is easily integrated using Fleet Edge and comes with a comprehensive, documented API library.

All-in-one stand-alone solution -The FB500 offers unparalleled features and functionality that includes: automatic switching between WAN and Inmarsat’s satellite connection, Wi-Fi antenna, built-in soft PABX, and a firewall. These features, along with being GMDSS-ready, make it ideal for vessel operations, safety, and crew welfare.

AptusLX is intuitive and powerful - Simple and quick installation of the FB500 via AptusLX, an intuitive yet powerful terminal management software. With secure login functionality both onboard and for remote support teams, and a customizable dashboard with multi-language support.

Features:

• Connects to Inmarsat’s ELERA network using their latest L-band modem
• Efficient 3-axis directional 19-patch phased array antenna
• Unlimited azimuth rotation
• Single cable connecting ADU & BDU

Technical Specifications:

• DC Input - 10.8 - 30 VDC
• Power (Max) - 120W
• RX Frequency - 1518.0 MHz - 1559.0 MHz
• TX Frequency - 1626.5 MHz - 1675.0 MHz
• Antenna Connectors - N female (ADU) – TNC female (BDU)
• Wi-Fi - 802.11 b/g
• ADU Dimensions - 733 x 797 mm / 28.8” x 31.4”
• ADU Weight - 29.5 kg / 65 lb
• BDU Dimensions - 315 x 190 x 42 mm / 12.4” x 7.5” x 1.7”
• BDU Weight - 1.5 kg / 3.3 lb
