Maretron M-Power CLMD12 DC Load Module 12 Channel N2K without Connectors

• NMEA 2000(R) Interface
• IP67 Rated
• Ignition Protected
• Opto-isolated from NMEA 2000(R), eliminating potential ground loops
• Twelve (12) dimmable Electronic Circuit Breakers (ECBs) for On/Off Control over NMEA 2000(R) network
• Individual breaker electrical current monitoring
• Breakers can have Power-Up states defined (ON, OFF or PREVIOUS STATE)
• Breakers can be Locked against inadvertent actuation.
• Seven (7) discrete inputs configurable as Active High or Active Low
• Automatic ECB overcurrent shutdown
• Automatic ECB thermal shutdown (Overtemperature Protection)

Designed for vessels of all sizes with smaller loads, the MPower(R) CLMD12 is a compact 12-Channel DC Load Controller Module. Two of the 12 breakers handle a maximum of 12 amps, six handle a maximum of 10 amps and four handle a maximum of 5 amps with a total current capacity of 75 Amps. Additionally, circuits can be paralleled.

If a smaller circuit needs to be protected, each of the 12 breakers can be set to trip at lower current levels using the new Maretron N2KAnalyzer(R) V3 software. In addition, the CLMD12 has inputs for up to 7 hard-wired switches that can be used to switch breaker states, or as inputs for other data such as bilge alarms or hatch positions, etc.

The CLMD12 handles many DC load types such as lights pumps, motors, and electronics. An added benefit of the CLMD12 is that it reports the current through each of the 12 breakers. This allows you to determine if loads are drawing too much or too little electrical current. This information can be used to report overcurrent faults and under-current conditions such as burnt-out bulbs.

For manual control of the loads, an optional MPower 12-Channel Bypass Module (CBMD12) can be installed in conjunction with the CLMD12.

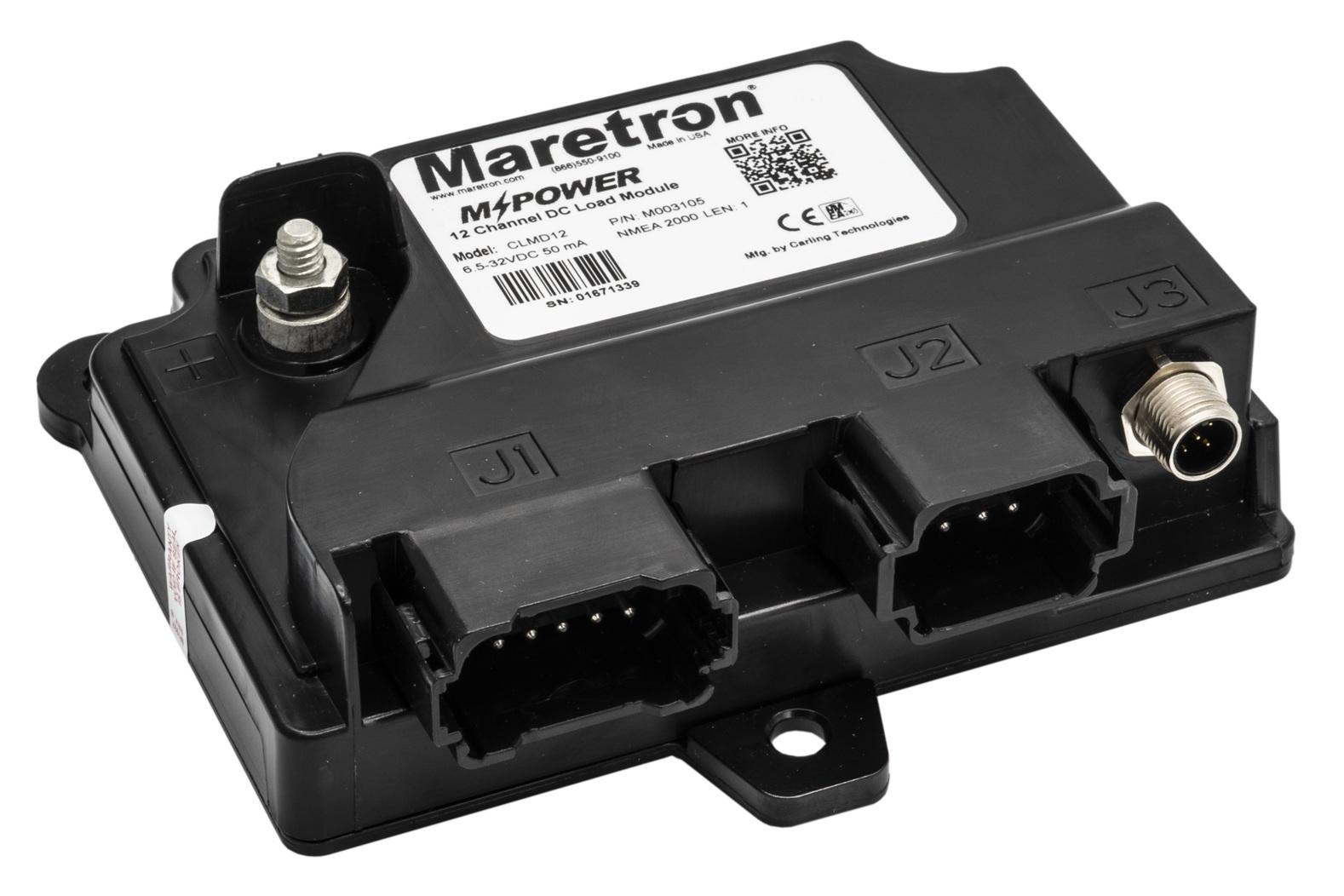

Maretron M-Power CLMD12R DC Load Module 12-Channel N2K With j1 and J2 Connectors

• NMEA 2000(R) Interface
• IP67 Rated
• Ignition Protected
• Opto-isolated from NMEA 2000(R), eliminating potential ground loops
• Twelve (12) dimmable Electronic Circuit Breakers (ECBs) for On/Off Control over NMEA 2000(R) network
• Individual breaker electrical current monitoring
• Breakers can have Power-Up states defined (ON, OFF or PREVIOUS STATE)
• Breakers can be Locked against inadvertent actuation.
• Seven (7) discrete inputs configurable as Active High or Active Low
• Automatic ECB overcurrent shutdown
• Automatic ECB thermal shutdown (Overtemperature Protection)

Designed for vessels of all sizes with smaller loads, the MPower(R) CLMD12 is a compact 12-Channel DC Load Controller Module. Two of the 12 breakers handle a maximum of 12 amps, six handle a maximum of 10 amps and four handle a maximum of 5 amps with a total current capacity of 75 Amps. Additionally, circuits can be paralleled.

If a smaller circuit needs to be protected, each of the 12 breakers can be set to trip at lower current levels using the new Maretron N2KAnalyzer(R) V3 software. In addition, the CLMD12 has inputs for up to 7 hard-wired switches that can be used to switch breaker states, or as inputs for other data such as bilge alarms or hatch positions, etc.

The CLMD12 handles many DC load types such as lights pumps, motors, and electronics. An added benefit of the CLMD12 is that it reports the current through each of the 12 breakers. This allows you to determine if loads are drawing too much or too little electrical current. This information can be used to report overcurrent faults and under-current conditions such as burnt-out bulbs.

• CLMD12 Load Module with a 12 pigtail adapter cable for both the J1 and J2 connectors
"

DST110 - NMEA 2000(R) Depth / Speed / Temperature Triducer

Maretron’s DST110 SmartTM Retractable Depth/Speed/Temperature Triducer, delivers precise digital depth, accurate speed and exact water temperature even at speeds above 40 knots-all with no programming or calibration necessary. Its patented SmartTM Sensor technology, retractable and removable sensor, and NMEA 2000(R) network connectivity make the DST110 easy to interpret, easy to install and connect with other navigation equipment, and easy to maintain.

The DST110 measures precise water depth at 0.4m to 100m with a wide beam width and is tolerant to most deadrise angles. It reads water temperature from -10 degC to +40 degC at ±1.0 degC accuracy, and accurate speed from 1 to 50 knots. User customizable calibrations for speed and temperature allow you to adjust speed and temperature indications for your installation. At 235kHz it can be used with a fish finder as an ideal navigation tool for sport or commercial fishing vessels-or with sailing vessels of all sizes.

The DST110’s plastic, bronze, or stainless steel housing choices are compatible with any hull material. It includes a blank plug to replace its sensor unit when the vessel will be docked for extended periods or trailered. This prevents damage to the sensor and reduces fouling growth.

Maretron’s DST110 is CE compliant (IEC60945) and is manufactured to the highest quality standards under ISO9K/2K procedures. Its compact, waterproof housing will provide years of reliable performance, making it the SmartTM choice in marine sensing.

FEATURES

• Water Depth
• Speed Through Water
• Water Temperature

Like the straight Micro/Mid Fieldattachable Connectors, the 90 deg field attachable connectors allow you to make field connections to bulk cable. The 90 deg connectors are particularly well suited for tight spaces like the back of displays where there is limited space for a straight connector.

• Useful in tight spaces or where sharp corners need to be made
• Waterproof rated to IP67

Like the straight Micro/Mid Fieldattachable Connectors, the 90 deg field attachable connectors allow you to make field connections to bulk cable. The 90 deg connectors are particularly well suited for tight spaces like the back of displays where there is limited space for a straight connector.

• Useful in tight spaces or where sharp corners need to be made
• Waterproof rated to IP67

Maretron’s NBE100 (Network Bus Extender) allows you to extend the maximum node count, network trunk length and cumulative drop length of any NMEA 2000(R): network. The NBE100 solves bus errors and other electrical issues caused by exceeding any of these limitations and makes design of large networks easier. NMEA 2000(R): networks have a maximum of 50 nodes allowed on a single network, a maximum network trunk length of 200m and a maximum cumulative drop length of 78m. If you have a network that exceeds any of these specifications, you can simply disconnect the network trunk in the middle and connect the ends to the NBE100, along with additional termination resistors. This will split the network into two electrical segments, each of which can have up to 50 nodes, for a total of 100 nodes on the logical network. The NBE100 will transparently route NMEA 2000(R): messages between the two network segments, making them work as a single logical NMEA 2000(R): network. Advanced priority-based message routing ensures that higher-priority messages are always prioritized over lower-priority messages, enabling predictable and reliable network operation.

FEATURES

• Segments a single large NMEA 2000(R): network into two smaller electrical segments.
• Allows you to exceed the 50 node limitation on a NMEA 2000(R): network.
• Allows you to exceed the 200m trunk length limitation on a NMEA 2000(R): network.
• Allows you to exceed the 78m cumulative drop length limitation on a NMEA 2000(R): networks.
• Allows all NMEA 2000(R): devices to operate as if they were still on a single NMEA 2000(R): network.
• Priority-based message routing ensures higher-priority messages get through the bus extender first.
• Optically isolates network segments, increasing signal integrity and network reliability.

Maretron NF-NM4P-NF Power Tap

• Connects power supply to NMEA 2000(R) Trunk Line in convenient plug/play fashion
• Replaceable fuses to protect bus and connected components from excessive current

A Powertap is connected to a network backbone just like any Tee but rather than connecting a device, its purpose is to provide "bus" power. Typically a Powertap is placed as central as possible between total devices on backbone. Maretron Powertap uniquely provides two power inputs permitting doubled power provision for devices.

VDR100 - Vessel Data Recorder

Maretron’s Vessel Data Recorder (VDR100) is used to record messages transmitted from every product interconnected on the vessel’s NMEA 2000(R) network. Each message is stored using solid-state memory technology with simple data retrieval via a removable USB flash drive (purchased separately). Depending on the chosen USB flash drive memory size, a year or more of data can be stored. And you never have to worry about losing the most recent data because the VDR100 uses a circular buffer where the oldest data is overwritten only after the entire memory is filled.

Recorded vessel data can be used in many ways including performance analysis, vessel tracking, preventative maintenance, network diagnostics, warranty incident, and accident investigation, all in an effort to reduce operating cost and improve safety. As an example of how the recorded data might be used, consider an NMEA 2000(R) fuel flow monitor plugged into the network, which will provide a complete record of how much fuel was used and how fast it was used. With a GPS antenna/receiver plugged into the NMEA 2000(R) network, you will have a complete record of where the vessel has been including its speed and course over ground.

Analyzing and graphing recorded data is done using a spreadsheet program like Microsoft(R) Excel(R). Simply remove the USB flash drive and plug it into a PC or Mac and run Maretron’s free extraction software (N2KExtractorTM). Choose any or all of the recorded data including the associated dates and times and the program will create a comma delimited file (.csv) that can be read into a spreadsheet for graphing or any other type of data analysis.

With the VDR100, you have a complete record of all the information produced by NMEA 2000(R) products connected to the vessel’s network. And because the VDR100 is engineered and manufactured to the highest standards (IEC 60945 Maritime Navigation and Radio Communication Equipment), your data is safely protected in a compact waterproof housing.

• Data Recorded on Solid State Memory via Removable USB Flash Drive
• Circular Buffer Preserves Latest Recorded Data while Oldest Data Overwritten when Memory is Full
• Recorded Data Available for Performance Analysis, Vessel Tracking, Preventive Maintenance, and More
• Optional Waterproof USB Flash Drive Cover
• Free Data Extraction Software (N2KExtractorTM) builds Comma Delimited Files for Data Analysis

USB Flash Drives

The USB Flash Drives are supplied by the user. Depending on how much data you wish to record without overwriting older data, the following table can be used to determine the capacity of the USB Flash Drive you need. These figures are estimated assuming a 25% loaded system (approx 463 frames/second).

Maretron M-Power CLMD16 DC Load Module 16 Channel N2K without Connectors

• NMEA 2000(R) Interface
• IP67 Rated
• Ignition Protected
• Opto-isolated from NMEA 2000(R), eliminating potential ground loops
• Sixteen (16) dimmable Electronic Circuit Breakers (ECBs) for On/Off Control over NMEA 2000(R) network
• Individual breaker electrical current monitoring
• Breakers can have Power-Up states defined (ON, OFF or previous states)
• Breakers can be Locked against inadvertent actuation.
• Capacitive touch switches for local control of all loads
• All inputs and outputs protected against short to Power and short to Ground
• Automatic ECB overcurrent shutdown
• Automatic ECB thermal shutdown (Overtemperature Protection)
• Eight (8) discrete digital input channels capable of sensing +ve or ground signals
• Two (2) resistive analog input channels
• One (1) 4-20mA current loop input channel

For larger breakers and more circuits, the MPower(R) CLMD16 is a 16-Channel DC Load Controller Module. Four of the 16 breakers handle a maximum of 25 amps and twelve breakers handle a maximum of 12 amps with a total current capacity of 125 Amps. Additionally, circuits can be paralleled.

The CLMD16 also supports two H-Bridge reversing polarity circuits that can be used for loads such as engine hatches, passerelles, trim tabs, etc. The CLMD16 has 8 inputs for hard-wired switches that can be used to switch breaker states, or as inputs for other data such as bilge alarms or hatch positions, etc. There are 3 inputs capable of monitoring tank levels.

The CLMD16 handles many DC load types such as lights, pumps, motors, and electronics. An added benefit of the CLMD16 is that it reports the current through each of the 16 breakers. This allows you to determine if loads are drawing too much or too little electrical current. This information can be used to report overcurrent faults and under-current conditions such as burnt-out bulbs.

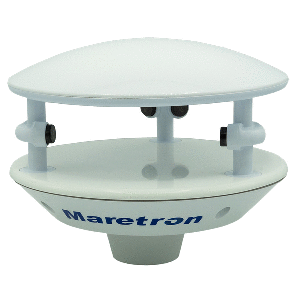

Maretron WSO200 Ultrasonic Wind and Weather Station

• Apparent wind speed
• Apparent wind direction
• Atmospheric pressure
• Air temperature
• Relative humidity
• User Replaceable Humidity Sensor
• Higher Signal to Noise Ratio
• Lower Power Consumption

The second generation WSO200 is a marine grade ultrasonic weather station that accurately measures wind speed and direction, air temperature, barometric pressure, relative humidity, wind chill factor, heat index, and dew points. The wind measurement is calculated using six ultrasonic sensors in delta configuration, which means there are no moving parts to wear out or to get caught in the rigging. Unlike mechanical anemometers and weather measuring devices, the WSO200 is not affected by the common issues such as bearing wear, salt and dirt build-up, or bird perching that can all result in failure or data inaccuracy.

Precise wind speed and direction is easily achieved under tilt of up to 30 deg, as can be the case with heeled sailboats or powerboats operating in pitching and rolling seas. This makes the new Maretron weather station a gamechanger for recreational boaters.

The WSO200 is NMEA 2000(R) certified. When combined with a Maretron DSM Series or dedicated TSM Series display or any device running N2KView(R) V3 software, all data is visible on the NMEA 2000 network for a truly plug and play experience. Add a Maretron depth, speed & temperature triducer (DST110), a Maretron GPS receiver (GPS200), and a Maretron compass (SSC300) to view true vessel referenced wind speed and direction as well as ground referenced speed and direction.

The WSO200 mounts on a 1 in-14 Standard Marine Mount and is waterproof to IP67 standards.

Maretron WSV100 Mconnect

• Say goodbye to deciphering data jargon! MConnect uses vibrant colors and high-definition graphics to give you an instant visual checkup of your boat’s health. Spot potential issues at a glance as the information effortlessly synchronizes across various screens. Fast, seamless, and beginner-friendly, MConnect boasts an uncluttered interface that you can customize to fit your needs.
• Dual NMEA 2000(R) Bus Connectivity
• Full Integration with Digital Switching Systems
• Web-Based Accessibility
• Affordable Pricing

MConnect is a cutting-edge, NMEA 2000(R) certified web server and screen editor designed to enhance the boating experience by centralizing control, monitoring, and automation functions. It connects to over 400 NMEA 2000(R) data points on a vessel, providing real-time visual feedback through customizable, modern graphics on multi-function displays or any browser-enabled device.

Engineered to cater to vessels of all sizes, this powerhouse delivers real-time data displayed on sleek web pages accessible from your favorite devices-phones, tablets, PCs, or MACs, take your pick! MConnect, inspired by the design brilliance of Maretron’s award-winning N2KView(R) Vessel Monitoring and Control Software, boasts intuitive graphic controls that transform complex data into a visually stunning experience.

MConnect seamlessly integrates with marine Multifunction Displays (MFDs) like Garmin OneHelmTM, Raymarine LH and many more. Plus, it fully integrates with digital switching systems such as Octoplex(R) and MPower(R) for a truly interconnected marine ecosystem.

MConnect doesn’t just stop at one NMEA 2000 bus-it connects directly to two, independently receiving data from both. Monitor Primary and Secondary buses, or keep an eye on Navigation and Monitoring buses separately-no bridge required.

Say goodbye to deciphering data jargon! MConnect uses vibrant colors and high-definition graphics to give you an instant visual checkup of your boat’s health. Spot potential issues at a glance as the information effortlessly synchronizes across various screens. Fast, seamless, and beginner-friendly, MConnect boasts an uncluttered interface that you can customize to fit your needs.

Say goodbye to deciphering data jargon! MConnect uses vibrant colors and high-definition graphics to give you an instant visual checkup of your boat’s health. Spot potential issues at a glance as the information effortlessly synchronizes across various screens. Fast, seamless, and beginner-friendly, MConnect boasts an uncluttered interface that you can customize to fit your needs.

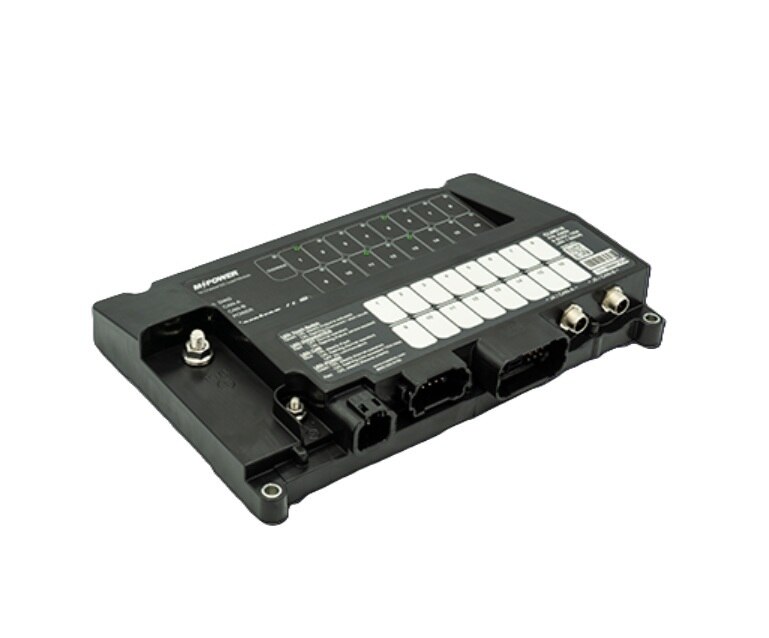

Maretron M-Power CLMD16-R DC Load Module 28 Channel N2K

• NMEA 2000(R) Interface
• IP67 Rated
• Ignition Protected
• Opto-isolated from NMEA 2000(R), eliminating potential ground loops
• Sixteen (16) dimmable Electronic Circuit Breakers (ECBs) for On/Off Control over NMEA 2000(R) network. 4 breakers capable of carrying up to 25 Amps. 12 breakers capable of carrying up to 12 Amps
• Individual breaker electrical current monitoring
• Breakers can have Power-Up states defined (ON, OFF or previous states)
• Breakers can be Locked against inadvertent actuation.
• Capacitive touch switches for local control of all loads
• All inputs and outputs protected against short to Power and short to Ground
• Automatic ECB overcurrent shutdown
• Automatic ECB thermal shutdown (Overtemperature Protection)
• Eight (8) discrete digital input channels capable of sensing +ve or ground signals
• Two (2) resistive analog input channels
• One (1) 4-20mA current loop input channel

For larger breakers and more circuits, the MPower(R) CLMD16 is a 16-Channel DC Load Controller Module. Four of the 16 breakers handle a maximum of 25 amps and twelve breakers handle a maximum of 12 amps with a total current capacity of 125 Amps. Additionally, circuits can be paralleled.

The CLMD16 also supports two H-Bridge reversing polarity circuits that can be used for loads such as engine hatches, passerelles, trim tabs, etc. The CLMD16 has 8 inputs for hard-wired switches that can be used to switch breaker states, or as inputs for other data such as bilge alarms or hatch positions, etc. There are 3 inputs capable of monitoring tank levels.

The CLMD16 handles many DC load types such as lights, pumps, motors, and electronics. An added benefit of the CLMD16 is that it reports the current through each of the 16 breakers. This allows you to determine if loads are drawing too much or too little electrical current. This information can be used to report overcurrent faults and under-current conditions such as burnt-out bulbs.

Remote control of navigation lights and boarding lights. Control of area lights with dimming. Burnt out bulb alerts.

• CLMD16 Load Module with a 1m mating connector for both the J1 and J2 connectors and a 1m I/O harness kit for the J3 connector.

Multiport boxes allow several drop cables to be consolidated and connected back to the trunk, which eliminates the need to have numerous tees connected near a single point. Multiport boxes connect back to the trunk through a double-ended cordset and Tee.

• Ideal for consolidating many connections; for example behind dashboards
• Requires the purchase of an additional double-ended cordset for connection back to the trunk

Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and they are waterproof for continued operation even while submerged in the bilge.

• Rugged, IP68 rated connectors for continued connection integrity in marine environments
• Various cable lengths to match installation requirements

Maretron’s FFM100 provides precision fuel flow information to help optimize fuel consumption, which can save thousands of dollars in fuel operating cost. The FFM100 uses state-of-the-art, positive displacement metering technology for unprecedented accuracy. In fact, the accuracy of the FFM100 is nearly that of commercial vessel systems costing tens of thousands of dollars, yet the FFM100 cost less than existing recreational systems found on the market today. Additional benefits of the positive displacement metering technology are the elimination of flow conditioning components such as straighteners and pulsation dampers. Other flow meter technologies require flow conditioning components that increase system and installation cost. The FFM100 also uses true temperature compensation with embedded temperature sensors within the meters. The returning fuel is generally hotter than the supply fuel and if not properly compensated, inaccuracies as much as 5% can occur in computing the engine’s fuel consumption. The FFM100 also detects momentary reverse flow in the fuel lines due to fluctuating pressure caused by the injection pump. Less accurate systems count the reverse fuel flow as part of the consumed fuel where the FFM100 properly accounts for momentary reverse flow.

Lastly, the FFM100 can be used for fluid types other than fuel (e.g., water, oil, etc.) by ordering the appropriate flow sender.

The FPM100 is NMEA 2000(R) certified so you can view any and all information anywhere on the vessel using a compatible NMEA 2000(R) display. The FFM100 is a key component of Maretron’s N2KView(R) vessel monitoring and control system.

• M2RSP-2R-E8 Fuel Flow Sensor 20 to 200 HP (0.53 to 26.4 GPH, 2 to 100 LPH)
• M2RSP-2R-E8 Fuel Flow Sensor 200 to 1000 HP (4 to 132 GPH, 15 to 500 LPH)
• M4ARP-2-E8 Fuel Flow Sensor 1000 to 3000 HP (48 to 396 GPH, 180 to 1500 LPH)

Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and they are waterproof for continued operation even while submerged in the bilge.

• Rugged, IP68 rated connectors for continued connection integrity in marine environments
• Various cable lengths to match installation requirements

Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and they are waterproof for continued operation even while submerged in the bilge.

• Rugged, IP68 rated connectors for continued connection integrity in marine environments
• Various cable lengths to match installation requirements

FPM100 - Fluid Pressure Monitor

Maretron?s Fluid Pressure Monitor is used to adapt up to six pressure transducers to the NMEA 2000(R) network (pressure transducers sold separately). This allows you to observe fluid pressures and tank levels anywhere on the vessel where there are NMEA 2000(R) compatible displays. With the appropriate transducer, the FPM100 reports either pressure or vacuum for a variety of applications including water pressures, oil pressures, hydraulic pressures, or system vacuum for detecting clogged filters.

The FPM100 also has a tank level mode, so that fluid levels in a tank can be monitored via a pressure transducer mounted at the bottom of the tank and transmitted over the NMEA 2000(R) network. This allows you to monitor the fluid levels in tanks that are extremely deep, have internal structures, or are otherwise not suited for other tank level sensing technologies. In this mode, the FPM100 can be calibrated for irregular tank shapes so that you know the true level of the tanks.

The Maretron FPM100 has the following features:

• NMEA 2000(R) interface
• Adapts up to six pressure transducers to the NMEA 2000 network
• Each channel independently programmed to match pressure transducer characteristics
• Each channel independently programmed in pressure/vacuum mode or tank level mode

In Pressure Mode:

• Can report programmable pressure sources including Water Pressure, Atmospheric Pressure, Compressed Air Pressure, Hydraulic Pressure, Steam Pressure, or User Defined pressure sources.

In Tank Level Mode:

• Pressure transducer allows use in extremely deep or irregularly shaped tanks that can?t be sensed using other technologies
• 16 programmable tank types including Fuel, Fresh Water, Waste Water
• Programmable tank number(s) up to 16 per tank type
• Programmable tank capacity

Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and they are waterproof for continued operation even while submerged in the bilge.

• Rugged, IP68 rated connectors for continued connection integrity in marine environments
• Various cable lengths to match installation requirements

Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and they are waterproof for continued operation even while submerged in the bilge.

• Rugged, IP68 rated connectors for continued connection integrity in marine environments
• Various cable lengths to match installation requirements

GPS200 - NMEA 2000(R) GPS Antenna/Receiver
Maretron’s GPS200 is a state-of-the-art 32 channel GPS antenna and receiver capable of providing five position fixes per second, accurate boat speed four times per second, and precision time once per second. An additional benefit of the GPS200 is that it broadcasts precision magnetic variation information using the current position and world magnetic model (WMM-2010).

The GPS200 antenna/receiver is a plug-and-play device that is fully compliant and certified to the NMEA 2000(R) Standard. It will directly connect to any NMEA 2000(R) network and communicate with navigational software, chart plotters, autopilots and dedicated instrument displays ? such as Maretron’s N2KView(R) Vessel Monitoring and Control system or DSM250 graphical display ? and its compact, waterproof housing provides years of reliable performance.

The GPS200 automatically decodes GPS correction signals from Satellite Based Augmentation Systems (SBAS) including the North American Wide Area Augmentation System (WAAS), the European Geostationary Navigation Overlay System (EGNOS), or the Asian Multifunctional Transport Satellite-based Augmentation System (MSAS) to provide better than 2.5m accuracy.

The GPS200 is easily mounted to any 1? standard marine mount with its standard 1??14 male threads. It can also be mounted directly to a deck, or even (due to it’s unprecedented sensitivity) underneath a fiberglass deck.

FEATURES

• Latitude
• Longitude
• Time
• Date
• Course Over Ground
• Speed Over Ground
• Magnetic Variation
• Satellite Status

APPLICATIONS

• Navigation
• Autopilot
• AIS

Pressure Transducer Mechanical Drawing

Operating Temperature <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

-40 degC to 105 degC

Storage Temperature <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

-40 degC to 105 degC

Proof Pressure <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

2.4 × Full Scale

Burst Pressure <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

2.4 × Full Scale

Reverse Voltage Protection <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

± 16V over 5 Minutes

Construction <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

304L stainless steel

Pressure/Temperature Cycles <td WIDTH="45%" VALIGN="TOP" HEIGHT="9 in>

0 to FS @ 8Hz; and ?40 degC to 105 degC for > 1.8x10<font FACE="Arial,Arial" SIZE="1 in>6 cycles

Thermal Shock <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

105 degC to ?40 degC, 0.5 hr soaks at Temp. (2s Transfer) for 300 cycles

Vibration <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

100 to 2000 Hz, 20g Sinusoidal, 3 Axes for 144 hours

EMC Compatibility <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

10 Volts/meter per EN 61000-4-3

Humidity <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

85 degC and 90% to 95% R. H. for 250 hours

Weight <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

85g

Pressure Transducer Mechanical Drawing

Operating Temperature <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

-40 degC to 105 degC

Storage Temperature <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

-40 degC to 105 degC

Proof Pressure <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

2.4 × Full Scale

Burst Pressure <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

2.4 × Full Scale

Reverse Voltage Protection <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

± 16V over 5 Minutes

Construction <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

304L stainless steel

Pressure/Temperature Cycles <td WIDTH="45%" VALIGN="TOP" HEIGHT="9 in>

0 to FS @ 8Hz; and ?40 degC to 105 degC for > 1.8x10<font FACE="Arial,Arial" SIZE="1 in>6 cycles

Thermal Shock <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

105 degC to ?40 degC, 0.5 hr soaks at Temp. (2s Transfer) for 300 cycles

Vibration <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

100 to 2000 Hz, 20g Sinusoidal, 3 Axes for 144 hours

EMC Compatibility <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

10 Volts/meter per EN 61000-4-3

Humidity <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

85 degC and 90% to 95% R. H. for 250 hours

Weight <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

85g

Maretron M-Power A3706 J1 Output Mating Connector with 0.3m Leads

Output (J1) Mating Connector with 12 flying leads

Maretron M-Power A3707 J2 Input Mating Connector with 0.3m Leads

Input (J2) Mating Connector with 12 flying leads

Maretron M-Power A3720 Bypass Module Jumper Wire with Lugs 6 AWG Red

A3720 Bypass Module Jumper Wire with Lugs, 6AWG, Red

Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and they are waterproof for continued operation even while submerged in the bilge.

• Rugged, IP68 rated connectors for continued connection integrity in marine environments
• Various cable lengths to match installation requirements

Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and they are waterproof for continued operation even while submerged in the bilge.

• Rugged, IP68 rated connectors for continued connection integrity in marine environments
• Various cable lengths to match installation requirements

Maretron CO-CO1224T Carbon Monoxide Detector

• listed to UL standard 2075
• 4 wire, system monitored
• Locals sounder
• Low current draw
• Alarm relay, form C
• trouble relay, Form A
• Dual LED’s
• test/Hush button
• SEMS wiring terminals

IPG100 - Internet Protocol Gateway

The Internet Protocol Gateway (IPG100) lets you connect Maretron black boxes (MBB100’s), Maretron touch screens (DSM800’s), PC?s, Mac?s, tablets, or smartphones to an NMEA 2000(R) network so you can monitor and control your vessel using Maretron?s N2KView(R) software. The conventional way of viewing NMEA 2000(R) information is with a display on the vessel that is directly connected to an NMEA 2000(R) network, but with the IPG100, you are not limited to direct connected displays. With the IPG100, you can use any device running N2KView(R) software to monitor and control your vessel from onboard or ashore.

Please note that the IPG100 requires an N2KView(R) hardware license key (dongle) with serial number 500 or higher. Older serial number dongles (1-499) will not work with the IPG100. If you already use N2KView(R) with a USB100 and PC but wish to upgrade to an IPG100, please contact Maretron sales to exchange your old dongle (serial number 1-499) for a new dongle (serial number 500 and up).

Two termination resistors are required on every NMEA 2000 network, one on each end of the trunk line. Normally, a male termination is used since male pins tend to point back to the power source. In cases where the gender is reversed, a female terminator may be required. The inline terminator is used where the network is terminated at a product, for example a GPS or weather station at the top of a mast.

• Screw terminal connector for positive connections
• Termination resistors are used to terminate both ends of the trunk line

Pressure Transducer Mechanical Drawing

Operating Temperature <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

-40 degC to 105 degC

Storage Temperature <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

-40 degC to 105 degC

Proof Pressure <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

2.4 × Full Scale

Burst Pressure <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

2.4 × Full Scale

Reverse Voltage Protection <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

± 16V over 5 Minutes

Construction <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

304L stainless steel

Pressure/Temperature Cycles <td WIDTH="45%" VALIGN="TOP" HEIGHT="9 in>

0 to FS @ 8Hz; and ?40 degC to 105 degC for > 1.8x10<font FACE="Arial,Arial" SIZE="1 in>6 cycles

Thermal Shock <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

105 degC to ?40 degC, 0.5 hr soaks at Temp. (2s Transfer) for 300 cycles

Vibration <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

100 to 2000 Hz, 20g Sinusoidal, 3 Axes for 144 hours

EMC Compatibility <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

10 Volts/meter per EN 61000-4-3

Humidity <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

85 degC and 90% to 95% R. H. for 250 hours

Weight <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

85g

DCM100 - NMEA 2000(R) DC Monitor

Maretron’s DCM100 DC Monitor is an advanced electronic monitoring device used to measure the voltage and current of any direct current (DC) power source or load. Examples of DC power sources that can be monitored with the DCM100 include batteries, alternators, solar panels, and wind generators. The DCM100 can also be used to monitor DC loads like inverters, windlasses, DC refrigerators, or any DC branch circuit. When the DCM100 is used to monitor batteries, sophisticated circuitry and software algorithms monitor battery temperature, load current, charging current and terminal voltage to precisely compute battery state of charge, state of health, and time remaining. To measure current, the DCM100 uses an included state-of-the-art Hall effect current sensor which simply slips over the wire - you don’t have to break connections or install connectors as you do with inline shunts used by other solutions. Best of all, the DCM100 is NMEA 2000(R) certified so you can view any and all DC information anywhere on the vessel using a compatible NMEA 2000(R) display. The DCM100 is a key component of Maretron’s N2KView(R) vessel monitoring and control system.

DCR100 - Direct Current Relay Module

Maretron’s DCR100 contains 6 Direct Current (DC) relays, each capable of switching up to 10amps. The DCR100 connects directly to an NMEA 2000(R) network, so you can turn on and off the relays from any device onboard or remotely running Maretron?s N2KView(R) software. The DCR100 easily handles resistive DC loads like lights, or inductive DC loads like pumps and motors. The DCR100 can also be used to switch AC circuits using external relays. An added benefit of the DCR100 is that it reports the current through each of the six channels. This allows you to determine if loads are drawing too little electrical current such as burnt out bulbs, or if the loads are starting to draw too much electrical current.

• Six Relays for On / Off Control Over NMEA 2000(R) Network

• Each Relay Capable of Carrying Up to 10 amps

• Individual Relay Electrical Current Monitoring

• Automatic Relay Over Current Shutdown (Shuts Down at ? 12 amps)

• Automatic Relay Thermal Shutdown (Over Temperature Protection)

Pressure Transducer Mechanical Drawing

Operating Temperature <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

-40 degC to 105 degC

Storage Temperature <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

-40 degC to 105 degC

Proof Pressure <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

2.4 × Full Scale

Burst Pressure <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

2.4 × Full Scale

Reverse Voltage Protection <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

± 16V over 5 Minutes

Construction <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

304L stainless steel

Pressure/Temperature Cycles <td WIDTH="45%" VALIGN="TOP" HEIGHT="9 in>

0 to FS @ 8Hz; and ?40 degC to 105 degC for > 1.8x10<font FACE="Arial,Arial" SIZE="1 in>6 cycles

Thermal Shock <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

105 degC to ?40 degC, 0.5 hr soaks at Temp. (2s Transfer) for 300 cycles

Vibration <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

100 to 2000 Hz, 20g Sinusoidal, 3 Axes for 144 hours

EMC Compatibility <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

10 Volts/meter per EN 61000-4-3

Humidity <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

85 degC and 90% to 95% R. H. for 250 hours

Weight <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

85g

Pressure Transducer Mechanical Drawing

Operating Temperature <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

-40 degC to 105 degC

Storage Temperature <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

-40 degC to 105 degC

Proof Pressure <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

2.4 × Full Scale

Burst Pressure <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

2.4 × Full Scale

Reverse Voltage Protection <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

± 16V over 5 Minutes

Construction <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

304L stainless steel

Pressure/Temperature Cycles <td WIDTH="45%" VALIGN="TOP" HEIGHT="9 in>

0 to FS @ 8Hz; and ?40 degC to 105 degC for > 1.8x10<font FACE="Arial,Arial" SIZE="1 in>6 cycles

Thermal Shock <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

105 degC to ?40 degC, 0.5 hr soaks at Temp. (2s Transfer) for 300 cycles

Vibration <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

100 to 2000 Hz, 20g Sinusoidal, 3 Axes for 144 hours

EMC Compatibility <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

10 Volts/meter per EN 61000-4-3

Humidity <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

85 degC and 90% to 95% R. H. for 250 hours

Weight <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

85g

Maretron M-Power A3721 Fuse Kit

A3721 Bypass Module Fuse Pack (4 x 15A, 5 x 10A, 4 x 5A)

Maretron M-Power A3802-1 CKM Keypad - Ring on Button w/CKM-NMEA Adapter Cable

This CKM12 12 Button Customizable Keypad is part of the MPower Series by Maretron. It replaces standard mechanical circuit and switches with state-of-the-art digital power distribution. Customers looking to achieve the power and convenience of advanced home automation for their boats will appreciate MPowers seamless, reliable operation as well as simple and cost-effective installation. The CKM12 is a customizable keypad featuring laser-etched legends and dimmable LED function lights for each button. The LEDs also provide diagnostics when fault conditions are detected.

With the rugged mechanical packaging (IP69), the CKM12 can be installed inside or outside the cabin. The low-profile design offers a seamless dash-board look and it can be mounted either vertically or horizontally.

Maretron Blue Mid 0.5 Meter Cable

• Rugged, IP68 rated connectors for continued connection integrity in marine environments
• Various cable lengths to match installation requirements
• Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable

Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.

Maretron’s J2K100 attaches directly into J1939 networks of compatible engines, transmissions, and gensets and converts the J1939 engine data to the NMEA 2000(R) marine digital interface. Critical engine, transmission, and genset data is then distributed throughout the vessel over a single cable where it can be monitored by any NMEA 2000(R) compatible display. All the information you need is available anywhere and everywhere you need it.

The J2K100 only listens to the J1939 network and draws no power from it (power is derived from the NMEA 2000(R) interface). The J2K100 does not transmit any information over the J1939 network so it will not interfere with existing engine control or status data in any way.

The J2K100 can also be used as part of a complete fuel computer. Simply connect the J2K100 together with the Maretron universal display (DSM200) and GPS antenna/receiver (GPS100) and you have a system capable of displaying gallons per hour and/or miles per gallon.

Maretron M1AR Fuel Flow Sensor

2 LPH to 100 LPH (0.53 GPH to 26.4 GPH)

For use with Maretron FFM100 Fuel Flow Meter

Pressure Transducer Mechanical Drawing

Operating Temperature <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

-40 degC to 105 degC

Storage Temperature <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

-40 degC to 105 degC

Proof Pressure <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

2.4 × Full Scale

Burst Pressure <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

2.4 × Full Scale

Reverse Voltage Protection <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

± 16V over 5 Minutes

Construction <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

304L stainless steel

Pressure/Temperature Cycles <td WIDTH="45%" VALIGN="TOP" HEIGHT="9 in>

0 to FS @ 8Hz; and ?40 degC to 105 degC for > 1.8x10<font FACE="Arial,Arial" SIZE="1 in>6 cycles

Thermal Shock <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

105 degC to ?40 degC, 0.5 hr soaks at Temp. (2s Transfer) for 300 cycles

Vibration <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

100 to 2000 Hz, 20g Sinusoidal, 3 Axes for 144 hours

EMC Compatibility <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

10 Volts/meter per EN 61000-4-3

Humidity <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

85 degC and 90% to 95% R. H. for 250 hours

Weight <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

85g

Pressure Transducer Mechanical Drawing

Operating Temperature <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

-40 degC to 105 degC

Storage Temperature <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

-40 degC to 105 degC

Proof Pressure <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

2.4 × Full Scale

Burst Pressure <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

2.4 × Full Scale

Reverse Voltage Protection <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

± 16V over 5 Minutes

Construction <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

304L stainless steel

Pressure/Temperature Cycles <td WIDTH="45%" VALIGN="TOP" HEIGHT="9 in>

0 to FS @ 8Hz; and ?40 degC to 105 degC for > 1.8x10<font FACE="Arial,Arial" SIZE="1 in>6 cycles

Thermal Shock <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

105 degC to ?40 degC, 0.5 hr soaks at Temp. (2s Transfer) for 300 cycles

Vibration <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

100 to 2000 Hz, 20g Sinusoidal, 3 Axes for 144 hours

EMC Compatibility <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

10 Volts/meter per EN 61000-4-3

Humidity <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

85 degC and 90% to 95% R. H. for 250 hours

Weight <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

85g

ACM100 - NMEA 2000(R) AC Monitor

Maretrons ACM100 is a device which monitors AC power sources and outputs information about these sources onto the industry standard NMEA 2000(R) marine data network. The ACM100 can monitor power busses, generators, or utility power. ACM100 output information is then displayed with networked NMEA 2000(R) equipment such as the Maretron DSM250 dedicated display or with NMEA 2000(R) compatible software such as Maretron N2KView. Best of all, the ACM100 is NMEA 2000(R) certified so you can view any and all AC information anywhere on the vessel using a compatible NMEA 2000(R) display. The ACM100 is a key component of Maretron’s N2KView(R) vessel monitoring and control system.

Maretron ALM100-01 Alarm Module

• NMEA 2000 Network Interface
• Super loud 105dB audible alarm
• Bright Red LED visual alarm
• Green LED status indicator
• Multiple selectable alarm patterns
• Waterproof - Can be mounted indoors or outdoors

Maretron’s Alarm Module generates visual and audible alerts for any monitored condition. The Alarm Module includes an extremely loud 105 dB SPL Piezoelectric sounder, along with a red high-brightness LED to indicate an alarm condition. A second green LED incidates that the Alarm Module is powered and ready to be triggered. The audible alarm can sound any one of 32 distinct pre-programmed patterns to indicate different alerts.

The Alarm Module can be triggered by alarms generated by Maretron’s N2KView Vessel Monitoring System, or by Maretron’s DSM250 Color Graphics Display.

The Alarm Module mounts in a standard electric box or can be flush mounted on any surface. Completely waterproof, the Alarm Module can be mounted inside or outside the vessel. Best of all, the ALM100 is NMEA 2000(R) certified so you can install alarms anywhere on the vessel. The ALM100 is a key component of Maretron’s N2KView(R) vessel monitoring and control system.

• Maretron ALM100-01 Alarm Module

Maretron BHW100 Bilge High Water Alarm Sensor

Used with SIM100 Switch Indicator Module to detect high bilge water.

Maretron M-Power A3802-2 CKM Keypad - Number in Center Ring on Button with CKM NMEEA Cable

• NMEA 2000(R) CAN Protocol
• IP69K Front Panel Sealing Protection
• Configurable
• Diagnostic Feedback
• Standard or Custom Etched Legends
• 1,000,000+ Button Actuation Cycles.
• Low Current Switching
• Tactile and Audible Feedback
• The dimmable button switches on the CKM12 are programmable to control any Maretron digital switching loads.
• Can be paired with third party systems using the NMEA 2000 standard PGN 127501 Binary Status Report.

The CKM12 is a customizable keypad featuring laser-etched legends and LED function lights for each button. The LEDs also provide diagnostics when fault conditions are detected.

With the rugged mechanical packaging (IP69K), the CKM12 can be installed inside or outside the cabin. The low-profile design offers a seamless dashboard look and it can be mounted either vertically or horizontally.

The CKM12 offers significant advantages over traditional electromechanical switches such as longer actuation cycle (1,000,000), reduced wiring harness and reduced installation time. The CKM12 is sold off the shelf in two configurations and include a CKM to NMEA 2000(R) Adapter Cable.

Maretron Blue Mid 1 Meter Cable

• Rugged, IP68 rated connectors for continued connection integrity in marine environments
• Various cable lengths to match installation requirements
• Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable

Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.

Pressure Transducer Mechanical Drawing

Operating Temperature <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

-40 degC to 105 degC

Storage Temperature <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

-40 degC to 105 degC

Proof Pressure <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

2.4 × Full Scale

Burst Pressure <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

2.4 × Full Scale

Reverse Voltage Protection <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

± 16V over 5 Minutes

Construction <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

304L stainless steel

Pressure/Temperature Cycles <td WIDTH="45%" VALIGN="TOP" HEIGHT="9 in>

0 to FS @ 8Hz; and ?40 degC to 105 degC for > 1.8x10<font FACE="Arial,Arial" SIZE="1 in>6 cycles

Thermal Shock <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

105 degC to ?40 degC, 0.5 hr soaks at Temp. (2s Transfer) for 300 cycles

Vibration <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

100 to 2000 Hz, 20g Sinusoidal, 3 Axes for 144 hours

EMC Compatibility <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

10 Volts/meter per EN 61000-4-3

Humidity <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

85 degC and 90% to 95% R. H. for 250 hours

Weight <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

85g

The Maretron PT-SNUB-01 Pressure Snubber is used in combination with the Maretron FPM100 Fluid Pressure Monitor and a pressure transducer FPM100 accessory. The PT-SNUB-01 dampens pressure variations between a pressure source and the pressure transducer, both smoothing the changes due to pressure spikes and surges and protecting the pressure transducer from these changes. Please follow these instructions to install the PT-SNUB-01 Pressure Snubber between a Maretron FPM100 pressure transducer accessory and a tank or pressure source being monitored.

Maretron?s Run Indicator Module monitors both AC and DC electrical circuits and reports, over an NMEA 2000(R) network, whether or not the electrical circuit is energized and running. The RIM100 works equally as well for monitoring manually switched loads (e.g., running lights, anchor lights, or deck lights) as it does for automatically switched loads. Monitoring automatically switched loads (e.g., bilge pumps, engine exhaust/intake fans, and transfer pumps) via the RIM100 is especially useful because you know exactly when equipment is, or isn’t running. Best of all, the RIM100 is NMEA 2000(R) certified so you can view any and all run indicator status anywhere on the vessel using a compatible NMEA 2000(R) display. The RIM100 is a key component of Maretron’s N2KView(R) vessel monitoring and control system.

APPLICATIONS

• Monitors and reports the running status of connected devices
• Works with both AC and DC loads
• Works with both automatically and manually switched loads
• Can indicate the status of a wide variety of loads
  • Bilge Pumps
  • Winches
  • Running Lights
  • Transfer Pumps
  • Exhaust/Intake Fans

Maretron Micro Cable Starter Kit1

• Micro Powertap
• Micro Male terminators x 2
• Micro Tee
• Micro 2m Cable
• Micro 6m Cable

Maretron Blue Mid 2 Meter Cable

• Rugged, IP68 rated connectors for continued connection integrity in marine environments
• Various cable lengths to match installation requirements
• Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable

Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.

Maretron Blue Mid 3 Meter Cable

• Rugged, IP68 rated connectors for continued connection integrity in marine environments
• Various cable lengths to match installation requirements
• Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable

Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.

Maretron M2AR Fuel Flow Sensor

25 to 500 LPH (6.6 to 132 GPH)

For use with Maretron FFM100 Fuel Flow Meter

Maretron M-Power RKF-001 Remote Key FOB

• FM Remote Control System for reliable operation.
• KeeloqTM- High Security protocol for enhanced protection.
• Operating range of up to 60 meters for extended reach.
• Available in 1-4 button versions to suit different requirements.
• Waterproof transmitter with an IP68 rating for durability.
• Flexible power options: 12 or 24Vdc Supply.
• Easy Learn functionality allows integration of up to 7 transmitters.
• Convenient installation through screw terminals.
• Relay Changeover Outputs with a capacity of 5A @ 230Vac.
• Choose between Momentary or Latching Outputs for customized control.

The RKF-001 Remote Key Fob is a secure and versatile remote control designed for general use analog wireless remote control. The system employs the Keeloq code-hopping protocol, ensuring a high level of security.

Installation is hassle-free, with the receiver easily connected using standard ’screw terminals.’ The receiver operates on 12 or 24Vdc power and can switch up to 5A at 230Vac. The outputs can be configured for either ’momentary’ or ’latching’ operation, providing flexibility based on your specific needs.

The RKF-001 is delivered ready for use, and additional transmitters can be effortlessly added to the system. Experience a reliable and secure remote control solution that is built to simplify your operational needs.

Maretron?s Switch Indicator Module monitors switch closure devices including, but not limited to, safety equipment (e.g., heat, smoke, carbon monoxide, explosive vapor detectors), security systems (e.g., motion, vibration, glass break, door and port hole magnetic switches), and vessel monitoring equipment (e.g., valve closed/open, high water bilge). The SIM100 continually monitors these switch closure devices and broadcasts information over the NMEA 2000 network about the switch state so the crew can be alerted to potential conditions or problems that warrant further investigation. Advanced features of the SIM100 include the ability to detect whether or not power has been disconnected from the monitored device or if the signal wires have been disconnected due to either corrosion, tampering, or for any other reason (if the monitored device is so equipped). With the SIM100, you can rest assured that critical sensors are receiving power, signal wires are connected, and all the safety, security and vessel functions are under constant supervision. SIM100 output information is then displayed with networked NMEA 2000(R) equipment such as the Maretron DSM250 dedicated display or with NMEA 2000(R) compatible software such as Maretron N2KView. Best of all, the SIM100 is NMEA 2000(R) certified so you can view any and all switch indicator status anywhere on the vessel using a compatible NMEA 2000(R) display. The SIM100 is a key component of Maretron’s N2KView(R) vessel monitoring and control system.

APPLICATIONS

• Heat Detectors
• Smoke Detectors
• Carbon Monoxide Detectors
• Bilge Water Detectors
• Magnetic Switches
• Glass Break Detectors
• Door, Hatch, and Porthole Magnetic Switches

Maretron Blue Mid 4 Meter Cable

• Rugged, IP68 rated connectors for continued connection integrity in marine environments
• Various cable lengths to match installation requirements
• Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable

Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.

Maretron MBB300C Vessel monitoring and control black box

• 9-36 Volt Power Supply
• Solid State Disk Drive
• Fanless Cooling System
• Dual CAN Bus for Single or Redundant NMEA 2000(R) Network Connections
• Four USB Ports for Touchscreen, Keyboard, Mouse, Trackball, or Thumb Drive Connections
• VGA or HDMI Video Connection (2560 x 1600 Maximum Resolution)
• Ethernet Connector for IP Camera Input or Email Alert Notification

Maretron’s third generation Black Box (MBB300C) is a dedicated processing unit that includes Maretron’s N2KView(R) vessel monitoring and control software. Unlike a PC that allows any software to be loaded, the MBB300C runs only N2KView(R) software making it extremely stable and dedicated to monitoring and controlling your vessel.

The MBB300C is ruggedized for marine use and includes a solid state disk drive to withstand the pounding associated with waves. And since the MBB300C dissipates less than 10 watts, there is no need for internal cooling fans that are noisy and wear out causing electronics to overheat and fail.

The MBB300C connects to a monitor through a VGA connector or an HDMI connector while the associated touch screen connects through a USB or serial port. Alternatives to controlling the N2KView(R) software through a touch screen include keyboards, mice, or track balls connected through USB. In addition to the two completely isolated CAN bus connectors for simple connection to single or redundant NMEA 2000(R) networks, the MBB300C has an Ethernet port for connecting Internet Protocol (IP) cameras for viewing video within the N2KView(R) software.

Of course you get the same flexibility using Maretron’s N2KView(R) software from the MBB300C as you would running the software on a PC, which includes the ability to configure as many screens as you want with exactly the information you want to see. Plus you get free upgrades to the software as improvements and new features are added.

Maretron SSC300 Solid-State Rate/Gyro Compass

• Better than 0.7 deg heading accuracy in static conditions
• Better than 1.5 deg heading accuracy in dynamic conditions
• Better than 1 deg/second rate of turn in
• Better than 1 deg pitch/roll accuracy
• Three axis magnetometer, three axis rate gyro, and three axis accelerometer
• Outputs NMEA 0183 and NMEA 2000 data simultanously
• IP67 waterproof enclosure

Maretron’s SSC300, implementing the second generation of Maretron’s award-wining compass technology, is a solid state, rate gyro electronic compass that provides better than 0.7 deg heading accuracy through ±45 deg of roll and pitch angle, and better than 1 deg roll and pitch accuracy in static conditions. Each SSC300 is factory calibrated for maximum accuracy. It delivers precise, reliable heading information ten times per second, plus vessel attitude including pitch and roll readings once per second. A micromachined 3-axis rate gyro is used, in conjunction with a 3-axis accelerometer, by advanced stabilization algorithms to provide accurate, stable readings during dynamically changing conditions such as hard turns or rough seas, making it an ideal heading sensor for autopilot or radar overlay applications.

Maretron’s SSC300 is certified to the NMEA 2000(R) network standard and compatible with the NMEA 0183 digital interface standard. It connects directly with any NMEA 2000(R) network and with the optional NMEA 0183 cable accessory, with NMEA 0183 listeners to share information with navigational software, chart plotters, autopilots, and dedicated instrument displays - including Maretron’s N2KView(R) vessel monitoring system, or Maretron’s DSM150 / DSM250 color graphics displays.

The SSC300 can be automatically calibrated for deviation. Its dynamic accuracy is improved with advanced digital filtering of the 3-axis magnetometer, 3-axis accelerometer and rate gyro.

• SSC300 Solid State Compass
• 2 - Mounting Brackets
• 4 - Mounting Bracket Screws
• 4 - Mounting Screws
• SSC300 User’s Manual
• Warranty Registration Card
• FA-CF-ST

TLA100 - NMEA 2000(R)Tank Level Adapter

The TLA100 is used to adapt commercially available resistive tank senders to the NMEA 2000(R) network. This allows you to observe tank levels anywhere on the vessel where there is an NMEA 2000(R) compatible display such as the Maretron DSM200.

The TLA100 is compatible with both the American standard (240-33 ohm) and the European standard (10-180 ohm) resistive senders. In fact, the TLA100 can be calibrated for any resistance between 0 and 300 ohms.

Unlike most tank senders that only work with rectangular tanks, the TLA100 can be calibrated for irregular tank shapes so you know the true level of the tanks. You can also use the TLA100 with analog gauges so you don’t have to get rid of existing gauges to enjoy the advantages of digitally networked information.

FEATURES

• Tank Level
• Tank Capacity
• Fluid Type

APPLICATIONS

• Fuel Tanks
• Fresh Water Tanks
• Grey Water Tanks
• Black Water Tanks
• Live Well Tanks
• Oil Tanks

Maretron Micro Cable Starter Kit2

• Micro Powertap
• Micro Male terminators x 2
• Micro Tees x 2
• Micro 2m Cable x 2
• Micro 10m Cable x 1
c

Maretron Blue Mid 5 Meter Cable

• Rugged, IP68 rated connectors for continued connection integrity in marine environments
• Various cable lengths to match installation requirements
• Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable

Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.

Maretron’s TLM100 is used to sense fluid levels of tanks by using ultrasonic technology. Ultrasonic, or sound waves, are transmitted via the TLM100 mounted at the top of the tank and the flight times of the sound waves to and from the fluid are measured much like a depth sensor. What this means for you is that there are no difficult to handle long probes protruding into the tank, which often foul and/or corrode. Once the TLM100 calculates and transmits the fluid level over the NMEA 2000(R) network, you can observe tank levels anywhere on the vessel where there is an NMEA 2000(R) compatible display such as the Maretron DSM250.

The TLM100 is capable of sensing fluid levels in tanks up to 40? (1.02m) in depth. It can be used for diesel, fresh water, waste water, black water, and oil tanks (see TLM150 for gasoline tanks or TLM200 for deeper tanks). Unlike most tank senders that only work with rectangular tanks, the TLM100 can be calibrated for irregular tank shapes so you can know the true fluid level in your tanks.

The TLM100 is mounted directly to the top of tanks using the industry standard SAE J1810 5-hole mounting pattern. The TLM100 can also be mounted to tanks with threaded tank openings using optional adapters that included both a 1.5 in NPT and a 1.25 in BSP adapter. There are other important TLM100 optional accessories including an airlock for black water applications, which keeps the face of the ultrasonic transmitter from fouling and an optional focus tube to permit use on boats with planing hulls, which is required if the vessel spends a significant amount of time with the bow pitched up.

Most importantly, the TLM100 is NMEA 2000(R) certified so you can view any and all tank levels anywhere on the vessel when using a compatible NMEA 2000(R) display. The TLM100 is another key component of Maretron’s N2KView(R) vessel monitoring and control system.

Maretron M-Power CBMD12 Bypass Module 12 Circuit N2K without Fuse Pack and Jumper Wire

• 75 Amps maximum current capacity
• Outputs: 12A Max (two outputs), 10A Max (six outputs), 5A Max (four outputs)
• 12V and 24V DC power systems
• Carling Technologies Curvette(R) Rocker Switches
• Overcurrent protection via ATC standard fuses

For manual control of the loads, an optional MPower(R) 12-Channel Bypass Module (CBMD12) can be installed in conjunction with the 12-Channel DC Load Controller Module (CLMD12). The maximum current capacity for the CBMD12 is 75 amps in 12V DC and 24V DC power systems.

The Bypass Module provides a manual method (ON/OFF switch) to control loads by providing power to each load in case of a CLMD12 malfunction or a NMEA 2000(R) network failure. The CBMD12 utilizes standard fuses for overcurrent protection and 12 Carling Curvette(R) Rocker Switches for manual control of each load. With the use of the Curvette rocker switches, there is no arcing that occurs while manually overriding a load. Furthermore, unlike other digital switching products, MPower does not require moving a fuse which can cause electrical connections to degrade, or the possibility for ignition.

It’s important to ensure that the current rating of the fuse for each load is appropriate to protect the load and the wiring for that load. Please note that the bypass module does not support paralleled outputs, since each circuit is controlled by a separate switch. Additionally, the bypass module does not support dimming of circuits.

Maretron M-Power CBMD12-R

Bypass Module 12 Circuit N2K with Fuse Pack and Jumper Wire

• 75 Amps maximum current capacity
• Outputs: 12A Max (two outputs), 10A Max (six outputs), 5A Max (four outputs)
• 12V and 24V DC power systems
• Carling Technologies Curvette(R) Rocker Switches
• Overcurrent protection via ATC standard fuses

For manual control of the loads, an optional MPower(R) 12-Channel Bypass Module (CBMD12) can be installed in conjunction with the 12-Channel DC Load Controller Module (CLMD12). The maximum current capacity for the CBMD12 is 75 amps in 12V DC and 24V DC power systems.

The Bypass Module provides a manual method (ON/OFF switch) to control loads by providing power to each load in case of a CLMD12 malfunction or a NMEA 2000(R) network failure. The CBMD12 utilizes standard fuses for overcurrent protection and 12 Carling Curvette(R) Rocker Switches for manual control of each load. With the use of the Curvette rocker switches, there is no arcing that occurs while manually overriding a load. Furthermore, unlike other digital switching products, MPower does not require moving a fuse which can cause electrical connections to degrade, or the possibility for ignition.

It’s important to ensure that the current rating of the fuse for each load is appropriate to protect the load and the wiring for that load. Please note that the bypass module does not support paralleled outputs, since each circuit is controlled by a separate switch. Additionally, the bypass module does not support dimming of circuits.

Maretron Micro/Mid Powertap Tee Connector

• Gold contacts for greatest reliability
• Keyed connectors for error-free connections
• 4.0 amps, 250 V

Micro/mid power tap tee, Mfg# CF-SPWR05-CF, female left, 5 meter molded power drop bottom, female right. Twin sets of power leads, no data. Yellow to denote power.

Maretron Blue Mid 6 Meter Cable

• Rugged, IP68 rated connectors for continued connection integrity in marine environments
• Various cable lengths to match installation requirements
• Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable

Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.

Maretron Blue Mid 8 Meter Cable

• Rugged, IP68 rated connectors for continued connection integrity in marine environments
• Various cable lengths to match installation requirements
• Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable
